SC(B)13-20-10kV Epoxy Resin Casting Dry Type Transformer

Intro：SCB14-NX2 transformer is a dry-type transformer that meets the new secondary energy efficiency, SCB14 transformer is based on our company's SCB13 model, through the optimization of core, coil and production process, to achieve the purpose of skills and noise reduction, is the next few years the country to promote energy-saving dry-type transformer.
Category：Dry-type Transformer
Clicknum：
Tel：+86 05926532199
Fax：+86 05926531799
Email：xujia8297@gmail.com

Detail
Related Video
Technology Downloads

> Product Brief

SCB14-NX2 transformer is a dry-type transformer that meets the new secondary energy efficiency, SCB14 transformer is based on our company's SCB13 model, through the optimization of core, coil and production process, to achieve the purpose of skills and noise reduction, is the next few years the country to promote energy-saving dry-type transformer.

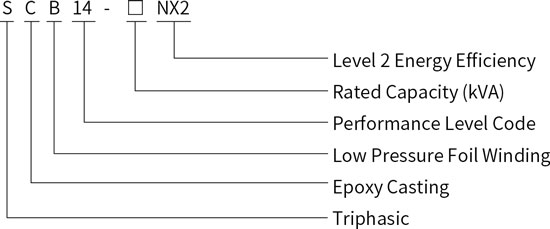

> Model Meaning

> Main Technical Parameters-Level2

Rated capacity (kVA)	Electrical steel belt				Amorphous alloys
	No-load loss W	Load loss W			No-load loss W	Load loss W
	No-load loss W	B(100°C)	F(120°C)	H(145°C)	No-load loss W	B(100°C)	F(120°C)	H(145°C)
30	130	605	640	685	60	605	640	685
50	185	845	900	965	75	845	900	965
80	250	1160	1240	1330	100	1160	1240	1330
100	270	1330	1415	1520	110	1330	1415	1520
125	320	1565	1665	1780	130	1565	1665	1780
160	365	1800	1915	2050	145	1800	1915	2050
200	420	2135	2275	2440	170	2135	2275	2440
250	490	2330	2485	2665	195	2330	2485	2665
315	600	2945	3125	3355	235	2945	3125	3355
400	665	3375	3590	3850	265	3375	3590	3850
500	790	4130	4390	4705	305	4130	4390	4705
630	910	4975	5290	5660	360	4975	5290	5660
630	885	5050	5365	5760	350	5050	5365	5760
800	1035	5895	6265	6715	410	5895	6265	6715
1000	1205	6885	7315	7885	470	6885	7315	7885
1250	1420	8190	8720	9335	550	8190	8720	9335
1600	1665	9945	10555	11320	645	9945	10555	11320
2000	2075	12240	13005	14005	850	12240	13005	14005
2500	2450	14535	15445	16605	1020	14535	15445	16605
