> Product Brief

SCB18-NX1 transformer is a dry-type transformer that meets the new level of energy efficiency, SCB18 transformer is our company on the basis of SCB13 model, through the optimization of core, coil and production process, to achieve the purpose of skills and noise reduction, is the next few years the country to promote energy-saving dry-type transformer.

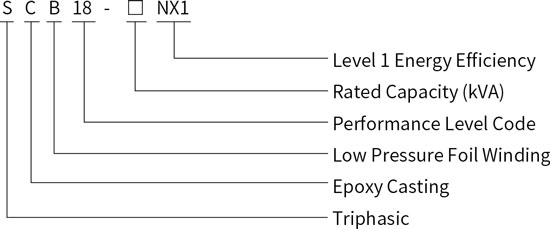

> Model Meaning

> Product Features

The company adopts foreign advanced technology to develop SC (B) 18 series with packing thin insulated dry-type transformer, with maintenance-free, anti-humid heat, fireproof, explosion-proof, small partial discharge, low noise, strong heat dissipation ability, in the forced air cooling conditions can improve the capacity operation, with fiberglass mesh plate filling coil to enhance the coil resistance to sudden short circuit, the secondary winding with copper foil winding, the use of vacuum pressure pouring, improve lightning impact resistance, short circuit resistance and overload capacity, At the same time, the thermal expansion coefficient of the filled resin and the copper conductor are similar, and its dry crack resistance is good; There is a temperature controller, with fault alarm, overtemperature alarm, overtemperature trip and black box functions, which can be connected to the computer through RS485 serial port for centralized monitoring and control. It is suitable for high-rise buildings, airports, stations, docks, subways, hospitals, power plants, residential areas, petrochemical, nuclear power plants, nuclear submarines and other places.

Transformer outlet mode: according to different interface forms to manufacture conventional outlet, standard sealed bus bar and standard side outlet, can also design special outlet mode according to user requirements.

> Main Technical Parameters-Level2
