Inflatable Cabinet Transformer Potential Transformer Voltage Transformer JDZ(X)12A-10R
- Intro：JDZ(X)12A-10R is a high-performance voltage transformer for 10kV distribution systems with stringent requirements for insulation monitoring and anti-interference, and its capacitance tube design significantly improves equipment reliability. Rated primary voltage 10kV Rated secondary voltage 100V (or 100/√3V) Accuracy class 0.2/0.5 (measurement), 3P/6P (protection) Rated load 50VA (customizable on request) Insulation level 12/42/75kV (I.F./Lightning Surge/Truncation) Ambient Temperature -25℃ ~ 40℃
- Category：Inflatable Cabinet Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

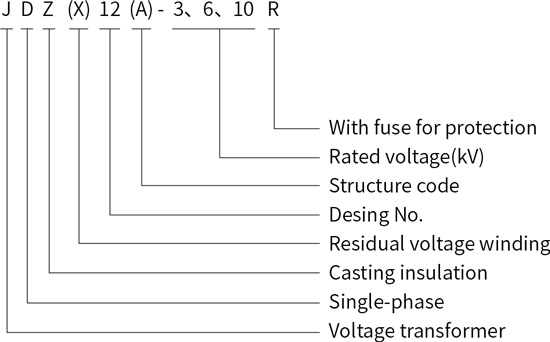

Type Description
Technical Data
| Parameter of voltage transformer | ||||||||||
| Type | Rated voltage ration(V) | Rated secondary output(VA) | Max.output (VA) | Rated insulation level(kV) | Wiring diagram | |||||
| 0.2 | 0.5 | 1级 | 3级 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | |||||
| JDZ12A-3R | 3000/100 | 30 | 90 | 250 | 400 | / | / | 1000 | 3.6/23/40 | Figure 1 |
| JDZ12A-6R | 6000/100 | 7.2/32/60 | ||||||||
| JDZ12A-10R | 10000/100 | 12/42/75 | Figure 2 | |||||||
| 10000/220 | ||||||||||
| 10000/100/100 | / | / | / | / | 20/20 20/30 | 50/50 | 500/500 | |||
| 10000/100/220 | / | / | / | / | 0.2/3---30/400 0.5/3---90/400 | 800/1000 | ||||
Note: The first wiring point connection mode:
JDZ12-3、6、10 First wiring point and 200A Amemcan type elbow ping cooperate.
The primary terminals of jdz12a-3, 6 and 10 are used together with American 200A large caliber elbow plug.

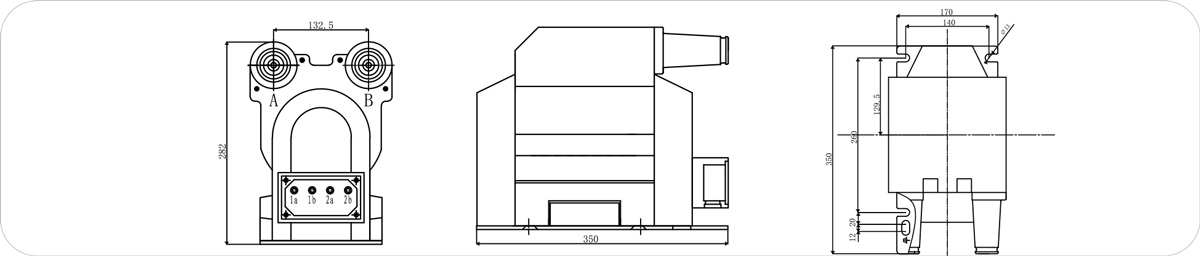

Overall Dimension Drawing

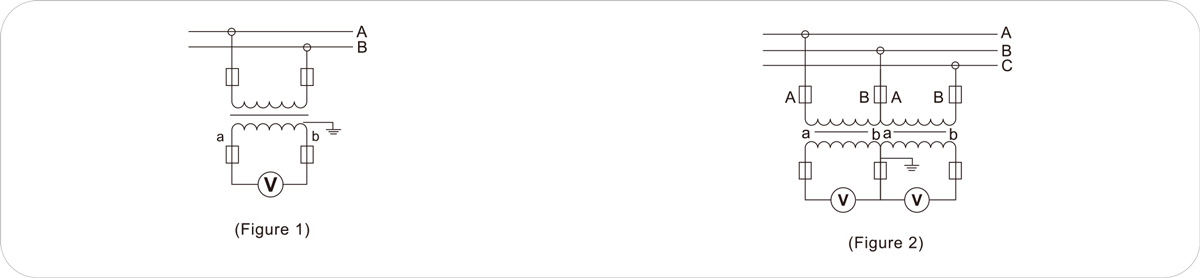

Wiring Diagram
