Three-phase Five-column Voltage Transformer Inflatable Cabinet Transformer 10kV JSZXF-10R
- Intro：The JSZXF-10R achieves a triple upgrade through material innovation (composite insulation), structural innovation (anti-pollution flashover umbrella skirt), and functional innovation (harmonic suppression digitalization), becoming the preferred solution for 10kV systems to handle complex operating conditions, with a full lifecycle cost reduction of over 30%.
- Category：Inflatable Cabinet Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

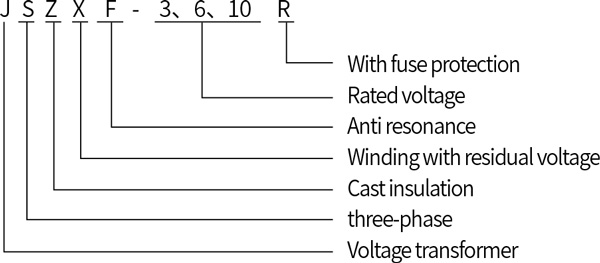

Type Description
Technical Data
| Model | Rated voltage ratio (V) | Accuracy level | Rated secondary output | Power supply capacity | remarks |
| JSZXF-10R | 10/√3:0.1/√3:0.22/√3:0.1 10/√3:0.22/√3:0.1 | 0.5/3/3P 3/3P | 3×30/3×300/50 3×300/50 | Maximum output 3x500VA Short-time capacity >3000VA/1s | 220V for power supply use |
Note: 1 A. The model of B and C three matching fuses is XRNP□- 12, 7.2, 0.5A, 50kA;
2. The three phases a, B and C are equipped with 20kV and 200A American elbow cable heads.

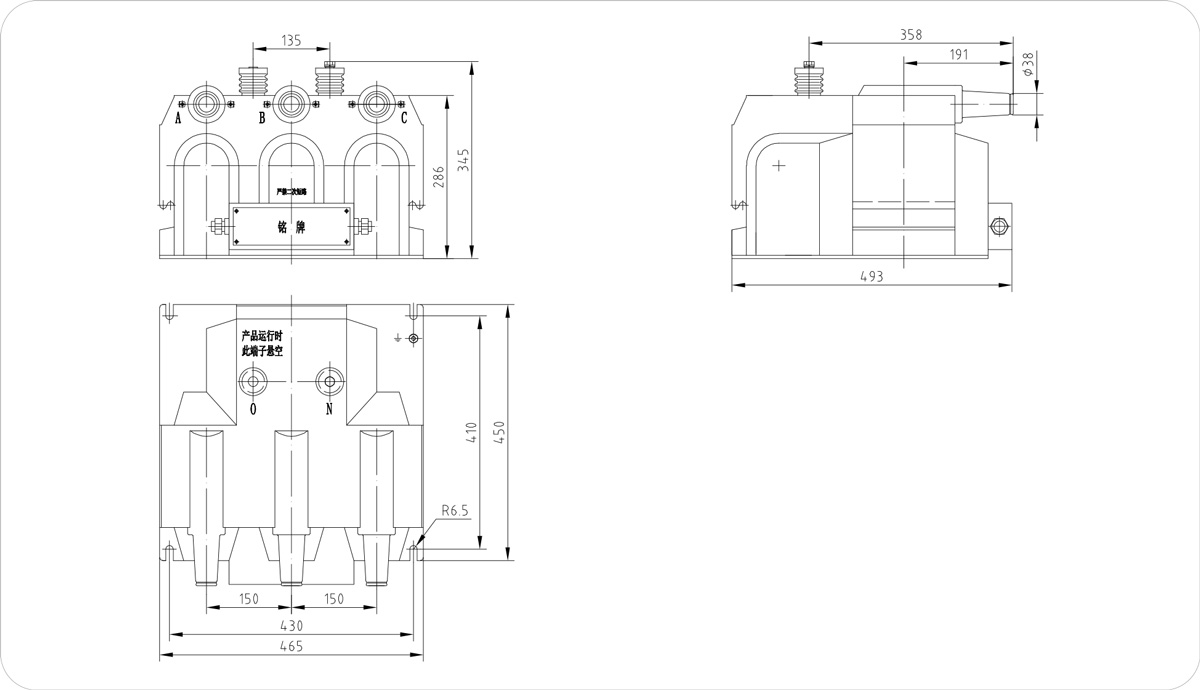

Overall Dimension Drawing
Relate Products
Inflatable Cabinet Transformer Potential Transformer Voltage Transformer JDZ(X)12A-10R
Inflatable Cabinet Transformer Potential Transformer Voltage Transformer JSZV12-10R
Inflatable Cabinet Transformer With Capacitor Tube 10kV Potential TransformerJSZY16-10R
Three-phase Five-column Voltage Transformer Inflatable Cabinet Transformer 10kV JSZXF-10R
