JSZV12A(B)-3、6、10RJSZV12A(B)-3、6、10R Type Voltage Transformer
- Intro：Type DescriptionTechnical DataParameter of voltage transformerTypeRated voltage ration(V)Accuracy classThree-phase rated secondary output(VA)Max.output(VA)Rated insulation level(kV)WiringdiagramJSZV12A-3R3000/1000.2--20×20.5--50×21--100×2500×23.6/25/40Figure 1JSZV12A-6R6000/1007.2/32/60JSZV12A-10R10 …
- Category：Inflatable Cabinet Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

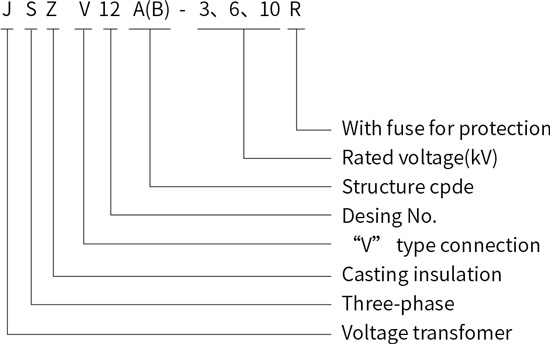

Type Description
Technical Data
| Parameter of voltage transformer | ||||||||||
| Type | Rated voltage ration(V) | Accuracy class Three-phase rated secondary output(VA) | Max.output (VA) | Rated insulation leve l(kV) | Wiring diagram | |||||
| JSZV12A-3R | 3000/100 | 0.2--20×2 0.5--50×2 1--100×2 | 500×2 | 3.6/25/40 | Figure 1 | |||||
| JSZV12A-6R | 6000/100 | 7.2/32/60 | ||||||||
| JSZV12A-10R | 10000/100 | 12/42/75 | ||||||||
| JSZV12A-3R | 3000/100/100 | 0.2/0.2--15×2/15×2 0.2/0.5--15×2/30×2 | 600×2 | 3.6/25/40 | Figure 2 | |||||
| JSZV12A-6R | 6000/100/100 | 7.2/32/60 | ||||||||
| JSZV12A-10R | 10000/100/100 | 12/42/75 | ||||||||
| JSZV12A-10R | 10000/100/220 | 0.2/3--15×2/500×2 0.5/3--30×2/500×2 | 800×2 | 12/42/75 | ||||||
| JSZV12B-3R | 3000/100 | 0.2--30×2 0.5--90×2 1--250×2 | 600×2 | 3.6/25/40 | Figure 1 | |||||
| JSZV12B-6R | 6000/100 | 7.2/32/60 | ||||||||
| JSZV12B-10R | 10000/100 | 12/42/75 | ||||||||
| JSZV12B-3R | 3000/100/100 | 0.2/0.2--30×2/30×2 0.2/0.5--30×2/50×2 | 1000×2 | 3.6/25/40 | Figure 2 | |||||
| JSZV12B-6R | 6000/100/100 | 7.2/32/60 | ||||||||
| JSZV12B-10R | 10000/100/100 | 12/42/75 | ||||||||
| JSZV12B-10R | 10000/100/220 | 0.2/3--30×2/1000×2 0.5/3--50×2/1000×2 | 1200×2 | 12/42/75 | ||||||

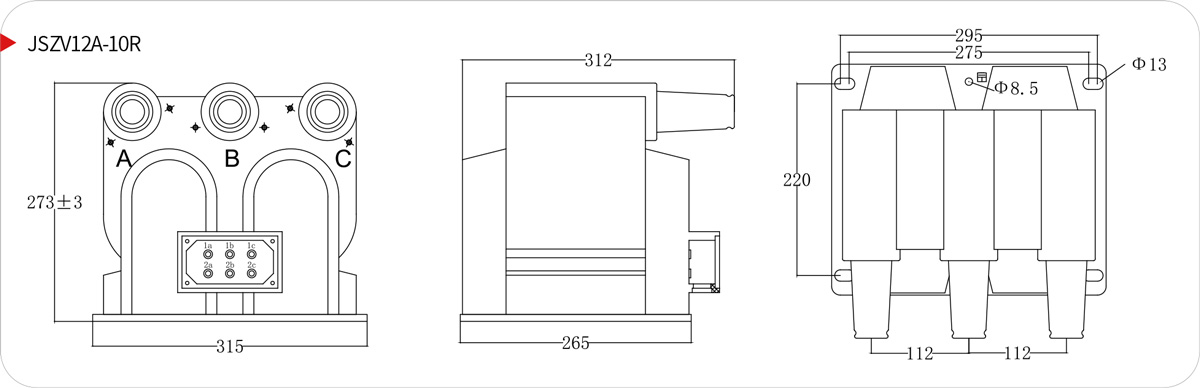

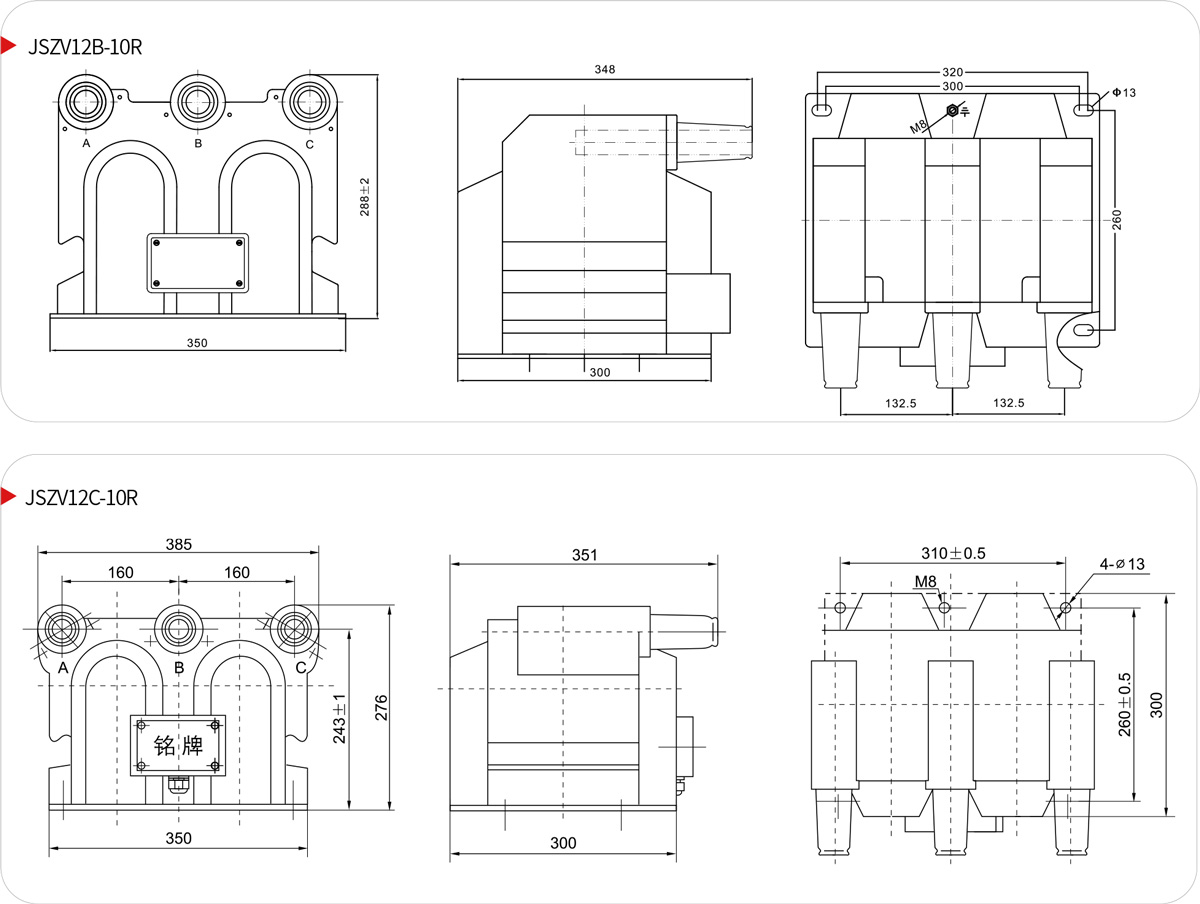

Overall Dimension Drawing

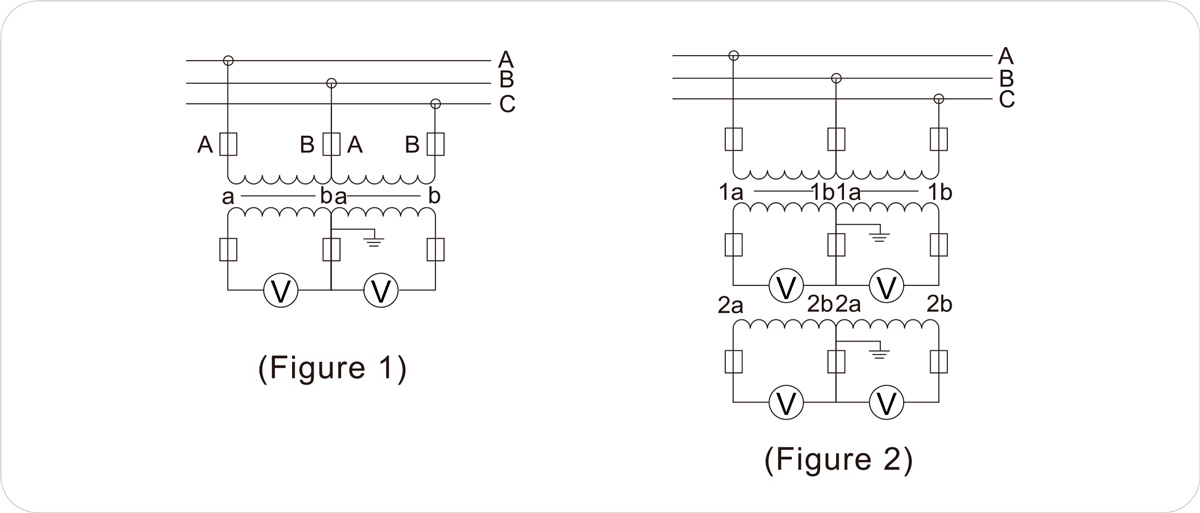

Wiring Diagram
