LMZC-10 Inflatable Cabinet Dedicated Feedthrough Current Transformer

Intro：Type DescriptionTechnical Data1. Power factor load： COSΦ = 0.8 ( lagging )；2. Rated secondary current： 5A or 1A；3. Rated frequency： 50 or 60Hz；4. Anti-Pollution grade： Class II；5. Ambient temperature： -5° C-40° C, daily average temperature not more than 30° C6. Altitude: ≤ 1000m；7. Standard : GB2084 …
Category：Low-voltage Current Transformers
Clicknum：
Tel：+86 05926532199
Fax：+86 05926531799
Email：xujia8297@gmail.com

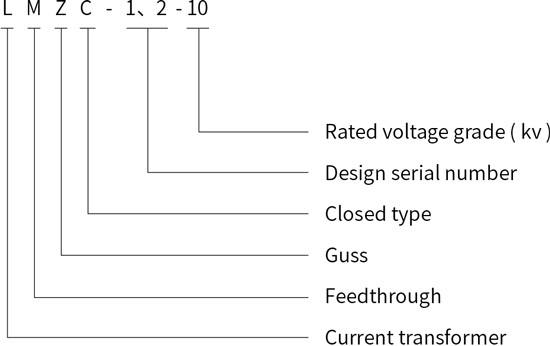

Type Description

Technical Data

1. Power factor load： COSΦ = 0.8 ( lagging )；

2. Rated secondary current： 5A or 1A；

3. Rated frequency： 50 or 60Hz；

4. Anti-Pollution grade： Class II；

5. Ambient temperature： -5° C-40° C, daily average temperature not more than 30° C

6. Altitude: ≤ 1000m；

7. Standard : GB20840.1 GB20840.2

Technical data form

Type	Purpose	Measuring current			Peotective Current transformer			Double winding current transformer
	Rated primary current	Accuracy class and rated burden			Accuracy class and rated burden			Accuracy class and rated burden
	Rated primary current	0.25	0.2	0.5	10P5	10P10	10P15	0.5	1	10P10	10P5
LMZC-1-10	75	-	-	-	-	-	-	-	-	-	-
	100	-	-	-	2.5	-	-	-	-	-	-
	150	2.5	2.5	2.5	2.5	-	-	-	-	-	-
	200	2.5	2.5	2.5	3.75	-	-	-	-	-	-
	300	5	5	5	5	-	-	-	-	-	-
	400	5	5	5	5	2.5	-	-	-	-	-
	500	10	10	10	7.5	2.5	-	-	-	-	-
	600	10	10	10	10	5	-	-	-	-	-
LMZC-2-10	50	-	-	2.5	-	-	-	-	-	-	-
	75	2.5	3.75	3.75	2.5	-	-	-	-	-	-
	100	5	5	5	5	2.5	1.5	-	-	-	-
	150	5	5	5	7.5	3.75	1.5	-	-	-	-
	200	7.5	7.5	7.5	10	5	2.5	5	5	-	2.5
	300	10	10	10	15	7.5	5	7.5	7.5	-	3.75
	400	15	20	20	20	10	7.5	7.5	7.5	2.5	5
	500	20	25	25	25	10	7.5	10	10	2.5	5
	600	20	25	30	25	10	7.5	10	10	3.75	7.5

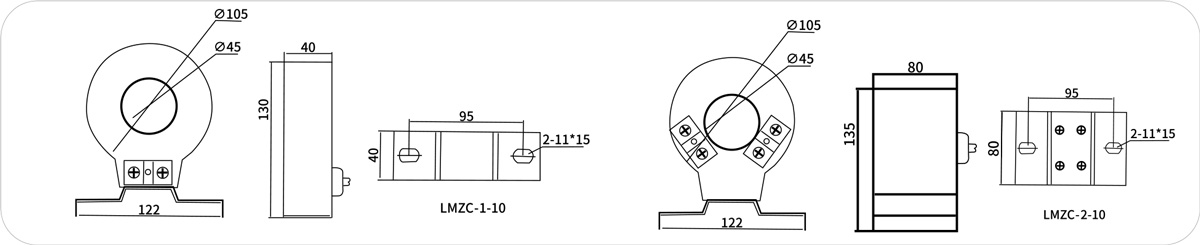

Overall Dimension Drawing
