LMZC-10 Inflatable Cabinet Dedicated Feedthrough Current Transformer
- Intro：Type DescriptionTechnical Data1. Power factor load： COSΦ = 0.8 ( lagging )；2. Rated secondary current： 5A or 1A；3. Rated frequency： 50 or 60Hz；4. Anti-Pollution grade： Class II；5. Ambient temperature： -5° C-40° C, daily average temperature not more than 30° C6. Altitude: ≤ 1000m；7. Standard : GB2084 …
- Category：Low-voltage Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

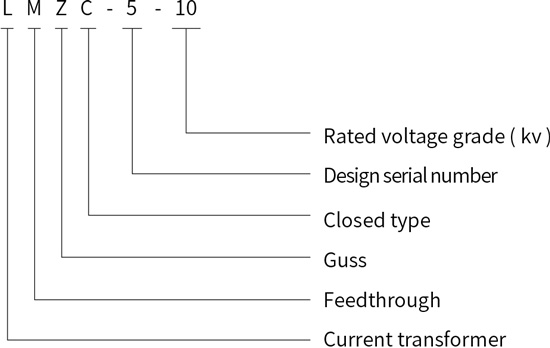

Type Description
Technical Data
1. Power factor load： COSΦ = 0.8 ( lagging )；
2. Rated secondary current： 5A or 1A；
3. Rated frequency： 50 or 60Hz；
4. Anti-Pollution grade： Class II；
5. Ambient temperature： -5° C-40° C, daily average temperature not more than 30° C
6. Altitude: ≤ 1000m；
7. Standard : GB20840.1 GB20840.2.
Technical data form
| Type | Purpose | Measuring current | Protective Current transformer | Double winding current transformer | |||||||
| Accuracy class and rated burden | Accuracy class and rated burden | Accuracy class and rated burden | |||||||||
| 0.2S | 0.2 | 0.5 | 10P5 | 10P10 | 10P15 | 0.6 | 1 | 10P10 | 10P5 | ||
| LMZC-5-10 | 50 | - | - | 2.5 | - | - | - | - | - | - | - |
| 75 | 2.5 | 3.75 | 3.75 | 2.5 | - | - | - | - | - | - | |
| 100 | 5 | 5 | 5 | 5 | 2.5 | 1.5 | - | - | - | - | |
| 150 | 5 | 5 | 5 | 7.5 | 3.75 | 1.5 | - | - | - | - | |
| 200 | 7.5 | 7.5 | 7.5 | 10 | 5 | 2.5 | 5 | 5 | - | 2.5 | |
| 300 | 10 | 10 | 15 | 15 | 7.5 | 5 | 7.5 | 7.5 | - | 3.75 | |
| 400 | 15 | 20 | 20 | 20 | 10 | 7.5 | 7.5 | 7.5 | 2.5 | 5 | |
| 500 | 20 | 25 | 25 | 25 | 10 | 7.5 | 10 | 10 | 2.5 | 5 | |
| 600 | 20 | 25 | 30 | 25 | 10 | 7.5 | 10 | 10 | 3.75 | 7.5 | |

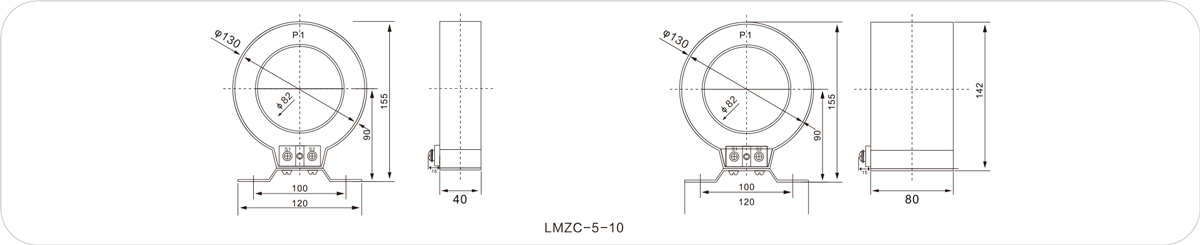

Overall Dimension Drawing
