LZZBJ9-10C2 Type Current Transformer
- Intro：Type DescriptionTechnical DataRated primary current(A)Accuracy classes combinationRated secondary output(VA)Rated short-time thermal current kA/sRated dynamic current(kA)Notes0.2S/0.5S0.20.510P1010P155-1500.2S/10P15101015152060I1n150I1nTwo windings2000.5S/10P1560I1n150I1n300-8000.2/10P15631301000-15 …
- Category：10KV-35KV Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

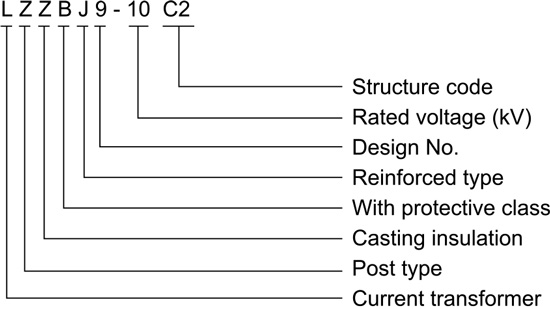

Type Description
Technical Data
| Rated primary current(A) | Accuracy classes combination | Rated secondary output(VA) | Rated short-time thermal current kA/s | Rated dynamic current(kA) | Notes | ||||
| 0.2S/0.5S | 0.2 | 0.5 | 10P10 | 10P15 | |||||
| 5-150 | 0.2S/10P15 | 10 | 10 | 15 | 15 | 20 | 60I1n | 150I1n | Two windings |
| 200 | 0.5S/10P15 | 60I1n | 150I1n | ||||||
| 300-800 | 0.2/10P15 | 63 | 130 | ||||||
| 1000-1500 | 0.5/10P15 | 15 | 20 | 20 | 30 | 63 | 130 | ||
| 2000-3150 | 10P10/10P10 | 80 | 160 | ||||||
| 5-150 | 0.2S/0.2/10P15 | 10 | 15 | 15 | 15 | 60I1n | 150I1n | Three windings | |
| 200 | 0.2S/0.5/10P15 | 60I1n | 150I1n | ||||||
| 300-800 | 0.2/0.5/10P15 | 63 | 130 | ||||||
| 1000-1500 | 0.5/0.5/10P15 | 20 | 20 | 20 | 63 | 130 | |||
| 2000-3150 | 0.5/0.5/10P15 | 80 | 160 | ||||||

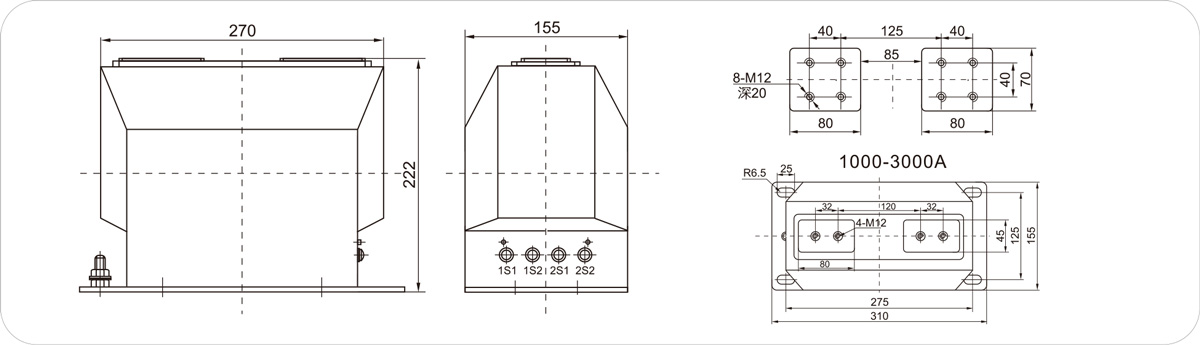

Overall Dimension Drawing
