LZZB9-35/250W2G1 Type Current Transformer
- Intro：Type DescriptionTechnical DataRated primary current(A)Accuracy classes combinationRated secondary outputShort-time thermal current(kA/S)Rated dynamic current(kA)0.20.55P2020-1000.5(S)/5P15/5P200.5(S)/5P15/5P2010151560I1n150I1n150-200922.5300-5001845600-125015302036901500-2000204030801602500204020Ove …
- Category：10KV-35KV Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

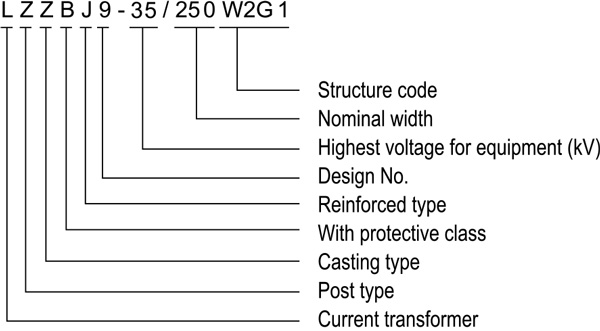

Type Description
Technical Data
| Rated primary current(A) | Accuracy classes combination | Rated secondary output | Short-time thermal current(kA/S) | Rated dynamic current(kA) | ||
| 0.2 | 0.5 | 5P20 | ||||
| 20-100 | 0.5(S)/5P15/5P20 0.5(S)/5P15/5P20 | 10 | 15 | 15 | 60I1n | 150I1n |
| 150-200 | 9 | 22.5 | ||||
| 300-500 | 18 | 45 | ||||
| 600-1250 | 15 | 30 | 20 | 36 | 90 | |
| 1500-2000 | 20 | 40 | 30 | 80 | 160 | |
| 2500 | 20 | 40 | 20 | |||

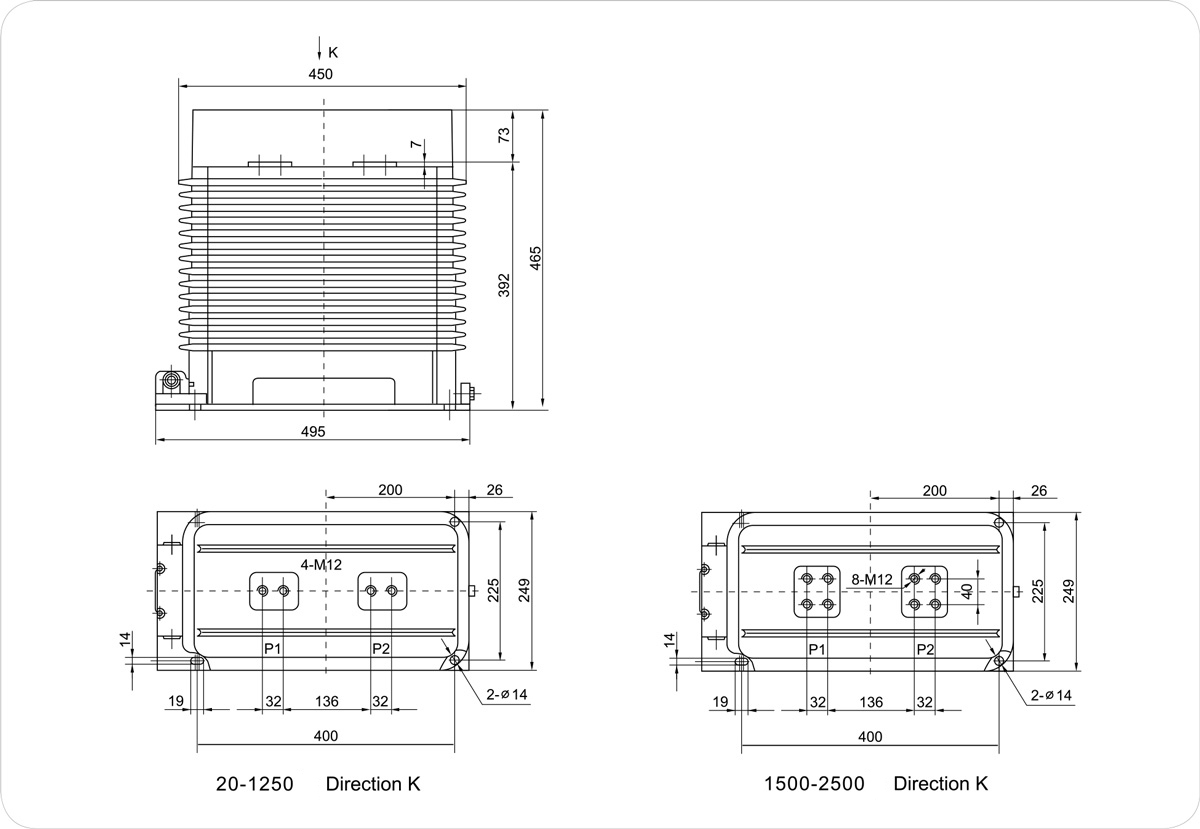

Overall Dimension Drawing
