LZZBJ9-12/150b/2 Type Current Transformer
- Intro：Type DescriptionTechnical DataRated primary current(A)Accuracy classes combinationRated secondary output(VA)Rated short-time thermal current kA/sRated dynamic current(kA)0.2S0.2(0.5)10P50.2S/10P10 0.2S/10P15 0.2/10P10 0.2/10P15 0.5/10P10 0.5/10P15101015*、200.3 …
- Category：10KV-35KV Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

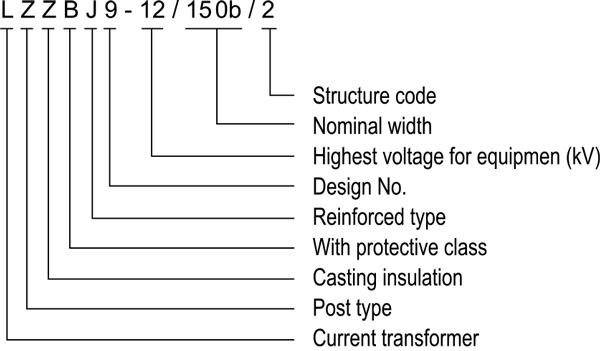

Type Description
Technical Data
| Rated primary current(A) | Accuracy classes combination | Rated secondary output(VA) | Rated short-time thermal current kA/s | Rated dynamic current(kA) | ||
| 0.2S | 0.2(0.5) | 10P | ||||
| 5 | 0.2S/10P10 0.2S/10P15 0.2/10P10 0.2/10P15 0.5/10P10 0.5/10P15 | 10 | 10 | 15*、20 | 0.3 | 0.75 |
| 10 | 0.6 | 1.5 | ||||
| 15 | 0.9 | 2.25 | ||||
| 20 | 1.2 | 3 | ||||
| 25 | 1.5 | 3.75 | ||||
| 30 | 1.8 | 4.5 | ||||
| 40 | 2.4 | 6 | ||||
| 50 | 3 | 7.5 | ||||
| 75 | 4.5 | 11.25 | ||||
| 100 | 6 | 15 | ||||
| 150 | 9 | 22.5 | ||||
| 200 | 12 | 30 | ||||
| 300 | 10*、15 | 18 | 45 | |||
| 400 | 24 | 60 | ||||
| 500 | 30 | 75 | ||||
| 600 | 36 | 90 | ||||
| 800 | 15*、30 | 48 | 120 | |||
| 1000 | 60 | 130 | ||||
| 1200 | ||||||
Note: In the table, the data marked with* are the parameters of general products.

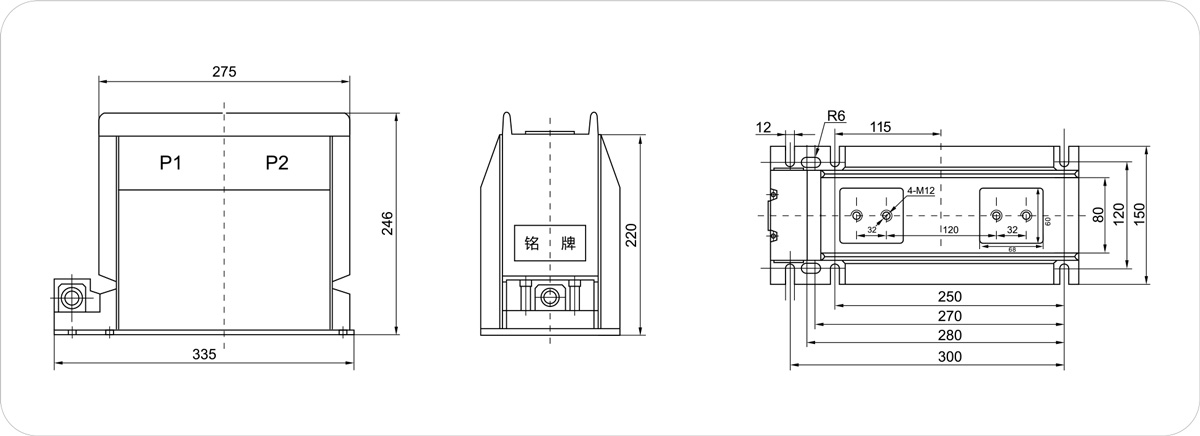

Overall Dimension Drawing
