LZZBJ9-10 Type Current Transformer
- Intro：Type DescriptionTechnical DataTypeRated primary current(A)Accuracy classes combinationRated secondary output(VA)Rated short-timethermal current kA/sRated dynamic currentkA0.2S0.2 (0.5)10PLZZBJ9-10A50.2S/10P100.5S/10P100.2/10P100.5/10P101010150.30.75100.61.5150.92.25201.23251.53.75301.84.5402.465037. …
- Category：10KV-35KV Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

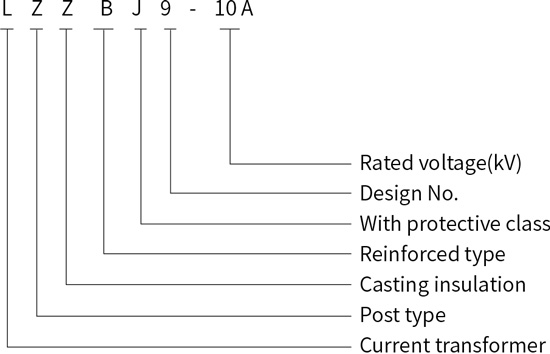

Type Description
Technical Data
| Type | Rated primary current(A) | Accuracy classes combination | Rated secondary output(VA) | Rated short-time thermal current kA/s | Rated dynamic current kA | ||
| 0.2S | 0.2 (0.5) | 10P | |||||
| LZZBJ9-10A | 5 | 0.2S/10P10 0.5S/10P10 0.2/10P10 0.5/10P10 | 10 | 10 | 15 | 0.3 | 0.75 |
| 10 | 0.6 | 1.5 | |||||
| 15 | 0.9 | 2.25 | |||||
| 20 | 1.2 | 3 | |||||
| 25 | 1.5 | 3.75 | |||||
| 30 | 1.8 | 4.5 | |||||
| 40 | 2.4 | 6 | |||||
| 50 | 3 | 7.5 | |||||
| 75 | 4.5 | 11.25 | |||||
| 100 | 6 | 15 | |||||
| 150 | 9 | 22.5 | |||||
| 200 | 12 | 30 | |||||
| 300 | 18 | 45 | |||||
| 100 | 0.2S/10P15 0.5S/10P15 0.2/10P15 0.5/10P15 | 6 | 15 | ||||
| 150 | 9 | 22.5 | |||||
| 200 | 12 | 30 | |||||
| 300、400 | 18 | 45 | |||||
| 500、600 | 15 | 30 | 75 | ||||
| 800 | 48 | 120 | |||||
| 1000 | 20 | 60 | 130 | ||||
| 1200 | 60 | 130 | |||||
| 1500 | 80 | 160 | |||||

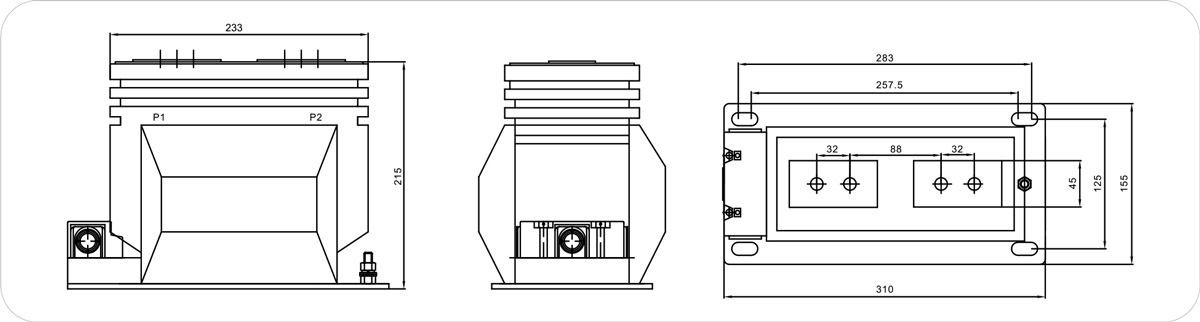

Overall Dimension Drawing
