LZZBJ9-12/150b/4 Type Current Transformer
- Intro：Type DescriptionTechnical DataRated primary current(A)Accuracy classes combinationRated secondary output(VA)Rated short-time thermal current kA/sRated dynamic current(kA)0.2S0.20.5(5)10P10(5)10P15(5)10P2020-1000.2(S)/10P0.5/10P0.2(S)/0.2/5P0.2(S)/0.5/5P0.2(S)/0.5/5P200.2(S)/5P10/10P150.5/5P10/10P201 …
- Category：10KV-35KV Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

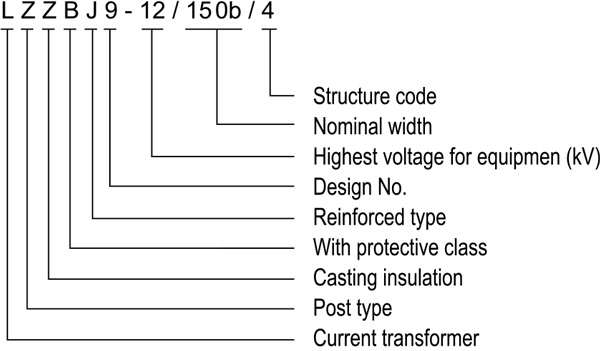

Type Description
Technical Data
| Rated primary current(A) | Accuracy classes combination | Rated secondary output(VA) | Rated short-time thermal current kA/s | Rated dynamic current(kA) | |||||
| 0.2S | 0.2 | 0.5 | (5)10P10 | (5)10P15 | (5)10P20 | ||||
| 20-100 | 0.2(S)/10P 0.5/10P 0.2(S)/0.2/5P 0.2(S)/0.5/5P 0.2(S)/0.5/5P20 0.2(S)/5P10/10P150.5/5P10/10P20 | 10 | 10 | 10 | 10*、30 | 15*、20 | 15*、10 | 60I1n | 150I1n |
| 150、200 | |||||||||
| 300、400 | 10 | 15 | 15*、30 | 20 | 15 | ||||
| 500 | |||||||||
| 600-800 | 15*、20 | ||||||||
| 1000-1250 | 15 | 20 | 63 | 130 | |||||
Note: The data marked with* in the table are parameters for class combination 0.2/5P10/10P15 and 0.5/5P10/10P20

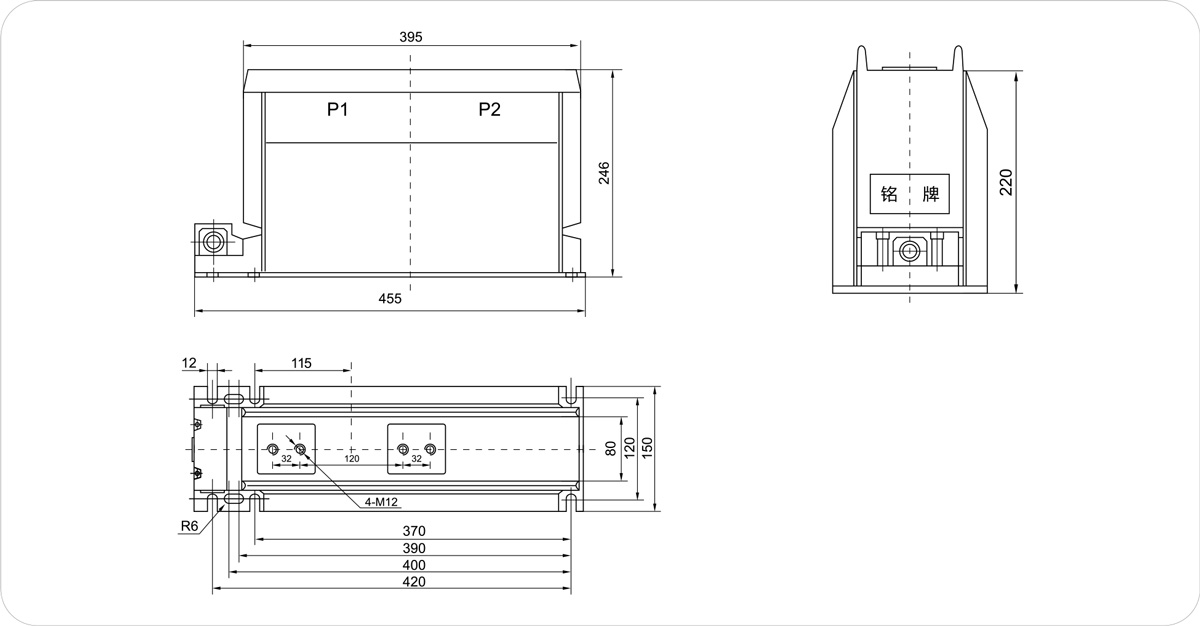

Overall Dimension Drawing
