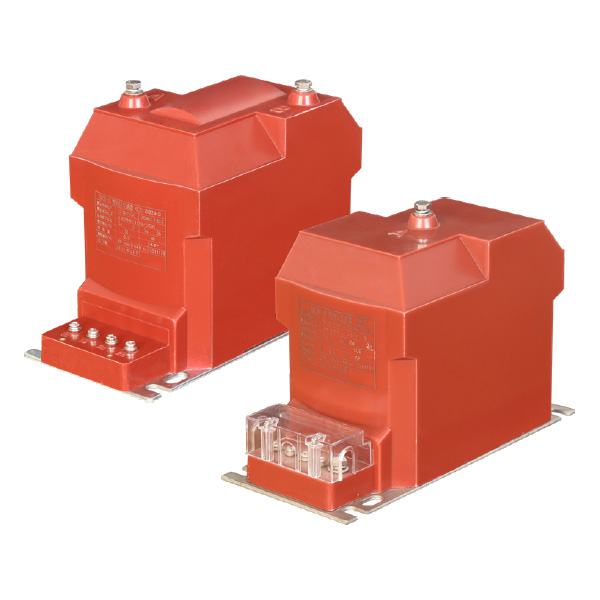

Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ(J)-3、6、10
- Intro：Type DescriptionTechnical DataTypeRated voltage ratio (V)Rated secondary output(VA)Max. output(VA)Rated insulation level (kV)Wiring diagram0.20.5Level1Level30.2/0.20.2/0.56PJDZ-3Q3000/10020305080//2003.6/25/40Figure1-2JDZ-6Q6000/1004007.2/32/60JDZ-10Q10000/10050012/42/7510000/100/100////15/2050Figur …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

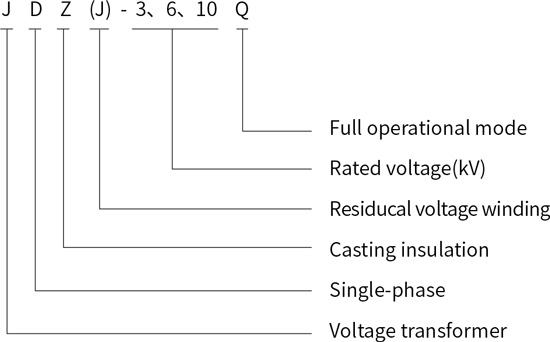

Type Description
Technical Data
Type | Rated voltage ratio (V) | Rated secondary output(VA) | Max. output(VA) | Rated insulation level (kV) | Wiring diagram | |||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 6P | |||||
| JDZ-3Q | 3000/100 | 20 | 30 | 50 | 80 | / | / | 200 | 3.6/25/40 | Figure1-2 |
| JDZ-6Q | 6000/100 | 400 | 7.2/32/60 | |||||||
| JDZ-10Q | 10000/100 | 500 | 12/42/75 | |||||||
| 10000/100/100 | / | / | / | / | 15/20 | 50 | Figure3-4 | |||
| JDZJ-3Q | 3000/√3 100/√3 100/√3 | 30 | 50 | 80 | / | 200 | 3.6/25/40 | Figure5 | ||
| JDZJ-6Q | 6000/√3 100/√3 100/√3 | 20 | 50 | 80 | 200 | 400 | 7.2/32/60 | |||
| JDZJ-10Q | 10000/√3 100/√3 100/√3 | 50 | 80 | 200 | 100 | 12/42/75 | ||||
| 10000/√3 100/√3 100/√3 100/√3 | / | / | / | / | 15/15 | 200/200 | Figure6 | |||

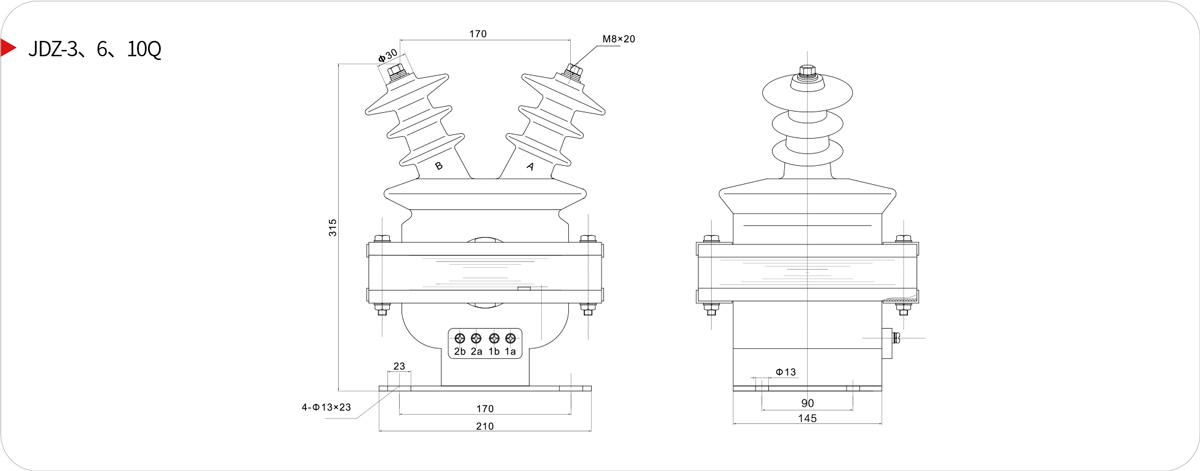

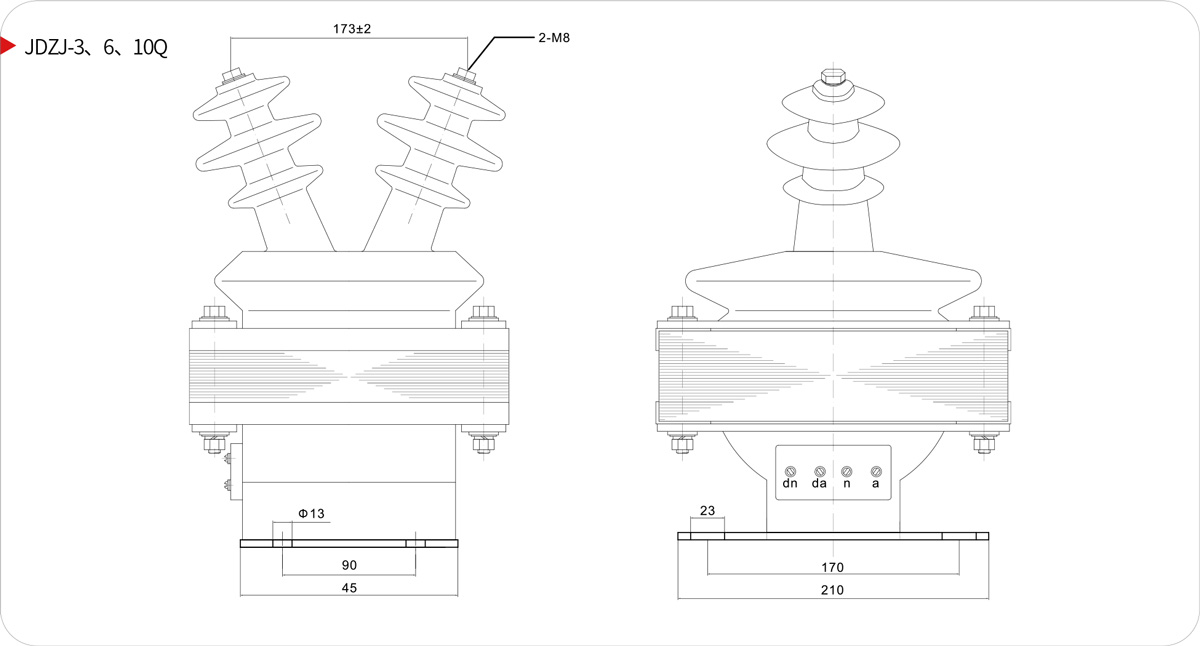

Overall Dimension Drawing

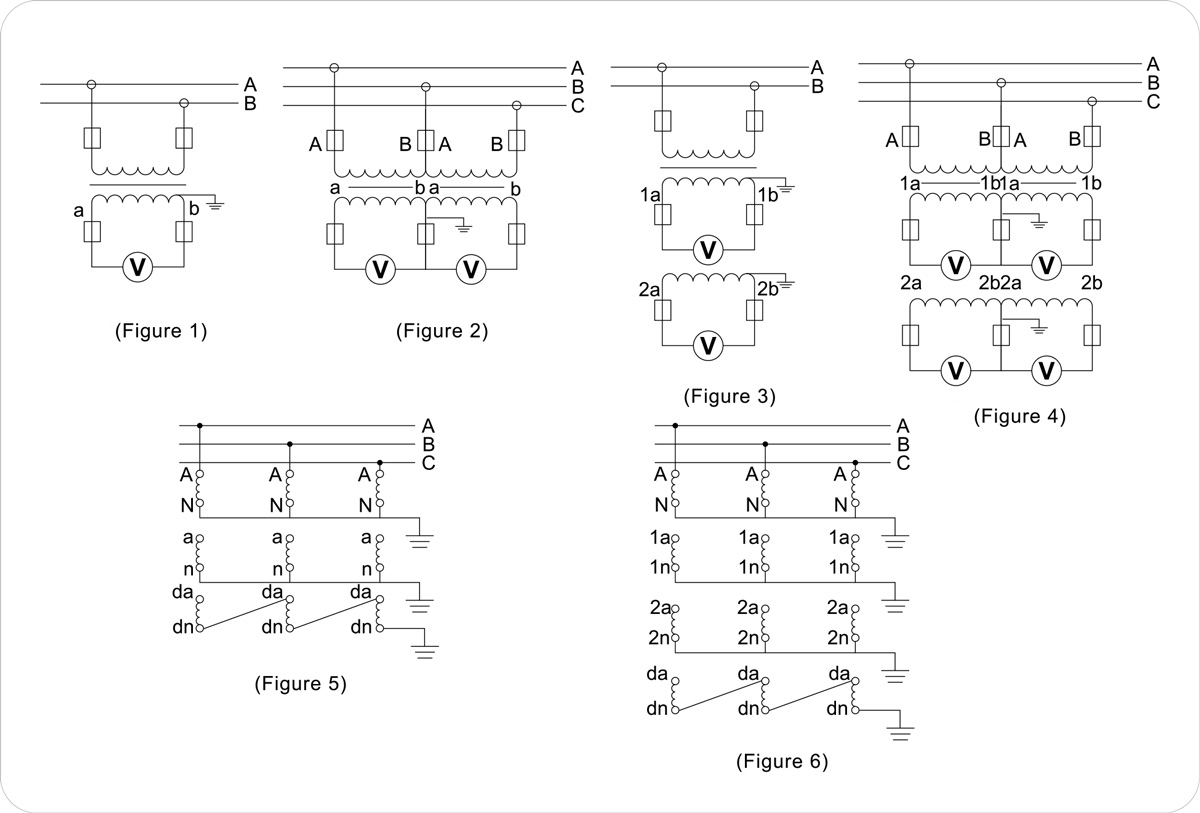

Wiring Diagram
