JDZ10-3, 6, 10A1, JDZX10-3, 6, 10A1(G) Type Voltage Transformer
- Intro：Type DescriptionTechnical DataTypeRated voltage ration(V)Rated secondary output(VA)Max. output(VA)Rated insulation level(kV)NotesWiring diagram0.20.5Level1Level30.2/0.20.2/0.50.2/30.5/36PJDZ10-3A13000/1003050100200//3003.6/25/40Same RZIOLFigure 1-2JDZ10-6A16000/1003007.2/32/60JDZ10-10A110000/1007501 …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

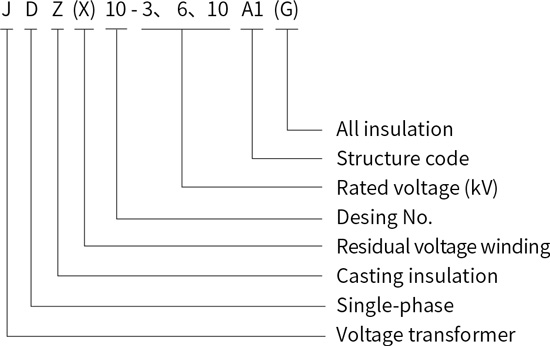

Type Description
Technical Data
| Type | Rated voltage ration (V) | Rated secondary output(VA) | Max. output (VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.2/3 0.5/3 | 6P | ||||||
| JDZ10-3A1 | 3000/100 | 30 | 50 | 100 | 200 | / | / | 300 | 3.6/25/40 | Same "RZIOL" | Figure 1-2 | |
| JDZ10-6A1 | 6000/100 | 300 | 7.2/32/60 | |||||||||
| JDZ10-10A1 | 10000/100 | 750 | 12/42/75 | |||||||||
| 10000/220 | / | / | / | 500 | / | / | / | 750 | Figure 3-4 | |||
| 10000/100/100 | / | / | / | / | 10/10 10/15 | / | / | 200/200 | Figure 5 | |||
| 10000/100/220 | / | / | / | / | / | 30/500 50/500 | / | 750 | / | |||
| JDZX10-3A1(G) | 3000/√3 100/√3 100/√3 | 15 | 50 | 80 | 150 | / | / | 50 | 300 | 3.6/25/40 | ||
| JDZX10-6A1(G) | 6000/√3 100/√3 100/√3 | 7.2/32/60 | ||||||||||
| JDZX10-10A1(G) | 10000/√3 100/√3 100/√3 | 12/42/75 | ||||||||||
| 10000/√3 100/√3 100/√3 100/√3 | / | / | / | / | 10/10 10/15 | 15/15 | / | 200/200 | Figure 6 | |||

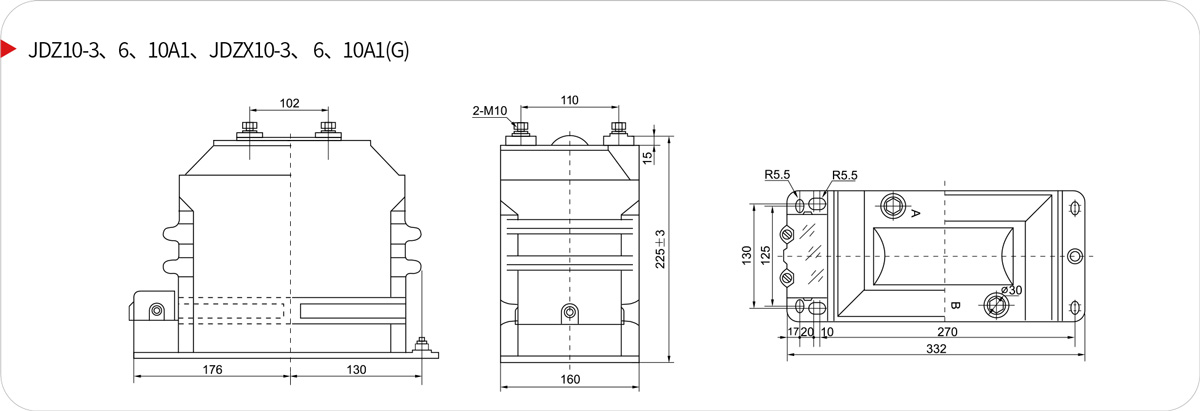

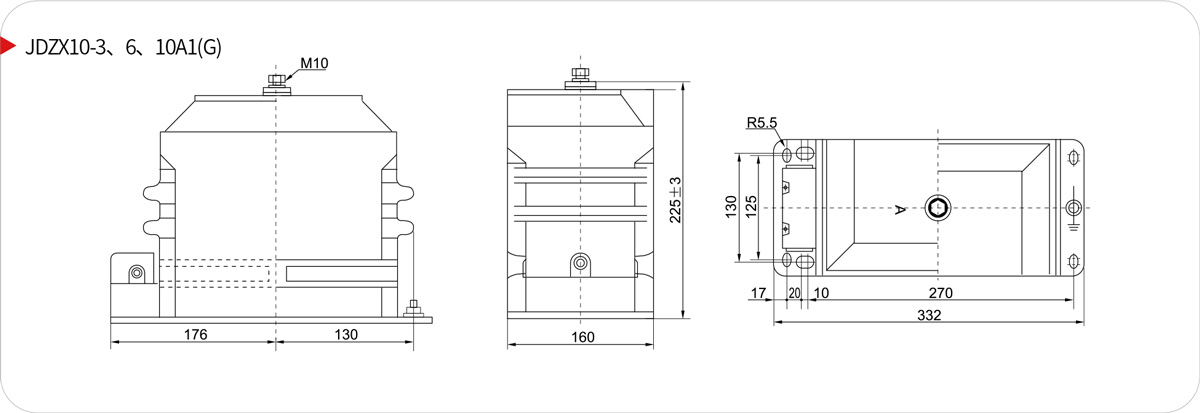

Overall Dimension Drawing

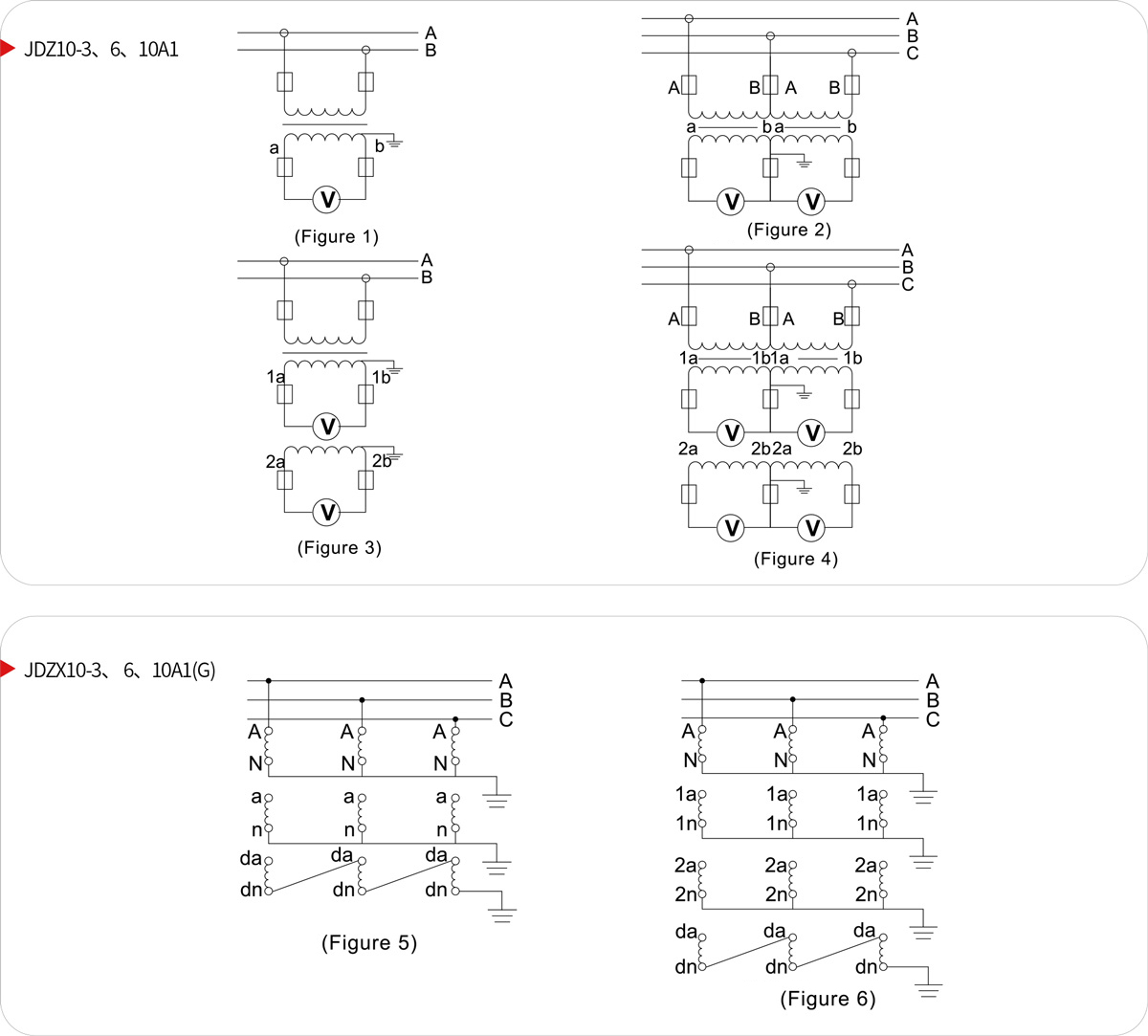

Wiring Diagram
