Voltage Transformer Fully Insulated Transformer JDZ(X)9-10
- Intro：Current and voltage measurements from 0.6 kV to 52 kV for the protection and monitoring of medium voltage power systems. The range of electric values in power supply systems is extensive. This is why it is necessary to match the respective currents and voltages to the values appropriate to connected measuring, protection, and control instruments.
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

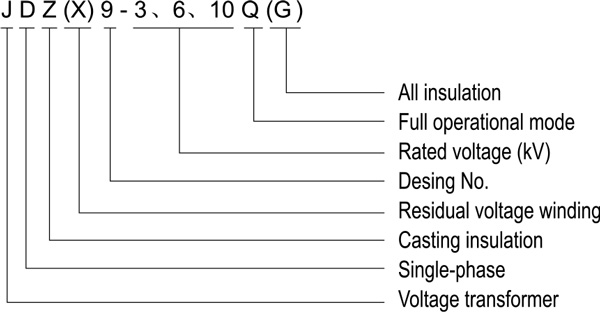

Type Description
Technical Data
| Type | Rated voltage ration (V) | Rated secondary output(VA) | Max. output (VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||
| JDZ9-3Q | 3000/100 | 40 | 100 | 200 | 240 | / | / | / | 500 | 3.6/25/40 | Same "VKV" | Figure 1-2 |
| JDZ9-6Q | 6000/100 | 7.2/32/60 | ||||||||||
| JDZ9-10Q | 10000/100 | 12/42/75 | ||||||||||
| JDZ9-10Q | 10000/100/100 | / | / | / | / | 20/20 20/30 | 30/30 | 400/400 | Figure 3-4 | |||
| JDZX9-3G | 3000/√3 / 100/√3 / 100/3 | 30 | 60 | 180 | 500 | / | / | 100 | 600 | 3.6/25/40 | / | Figure 5 |
| JDZX9-6G | 6000/√3 / 100/√3 / 100/3 | 7.2/32/60 | ||||||||||
| JDZX9-10G | 10000/√3 / 100/√3 / 100/3 | 12/42/75 | ||||||||||
| 10000/√3 / 100/√3 / 100/√3 / 100/3 | / | / | / | / | 15/15 15/20 | 40/40 | 400/400 | Figure 6 | ||||

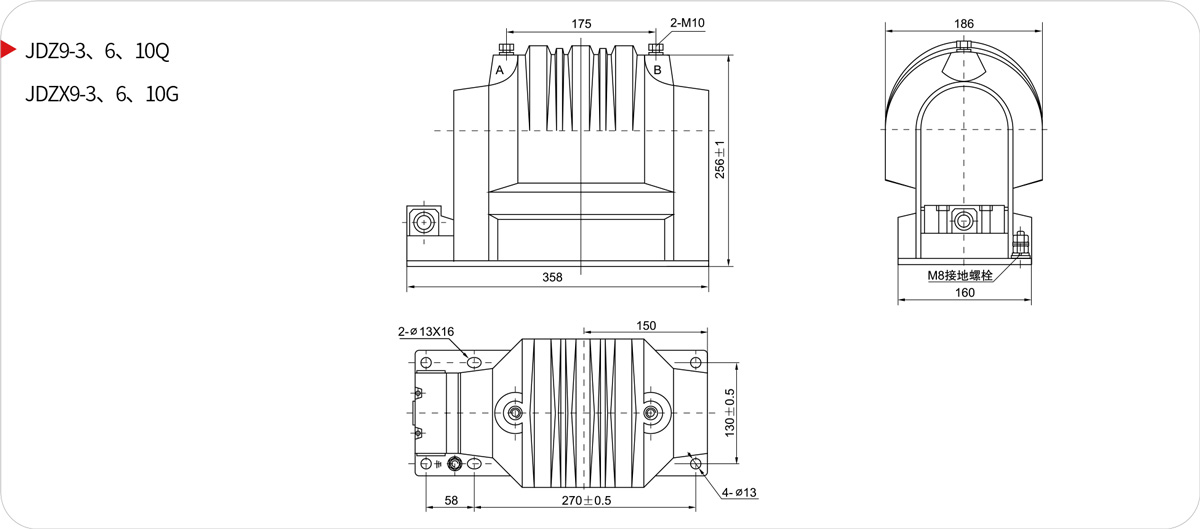

Overall Dimension Drawing

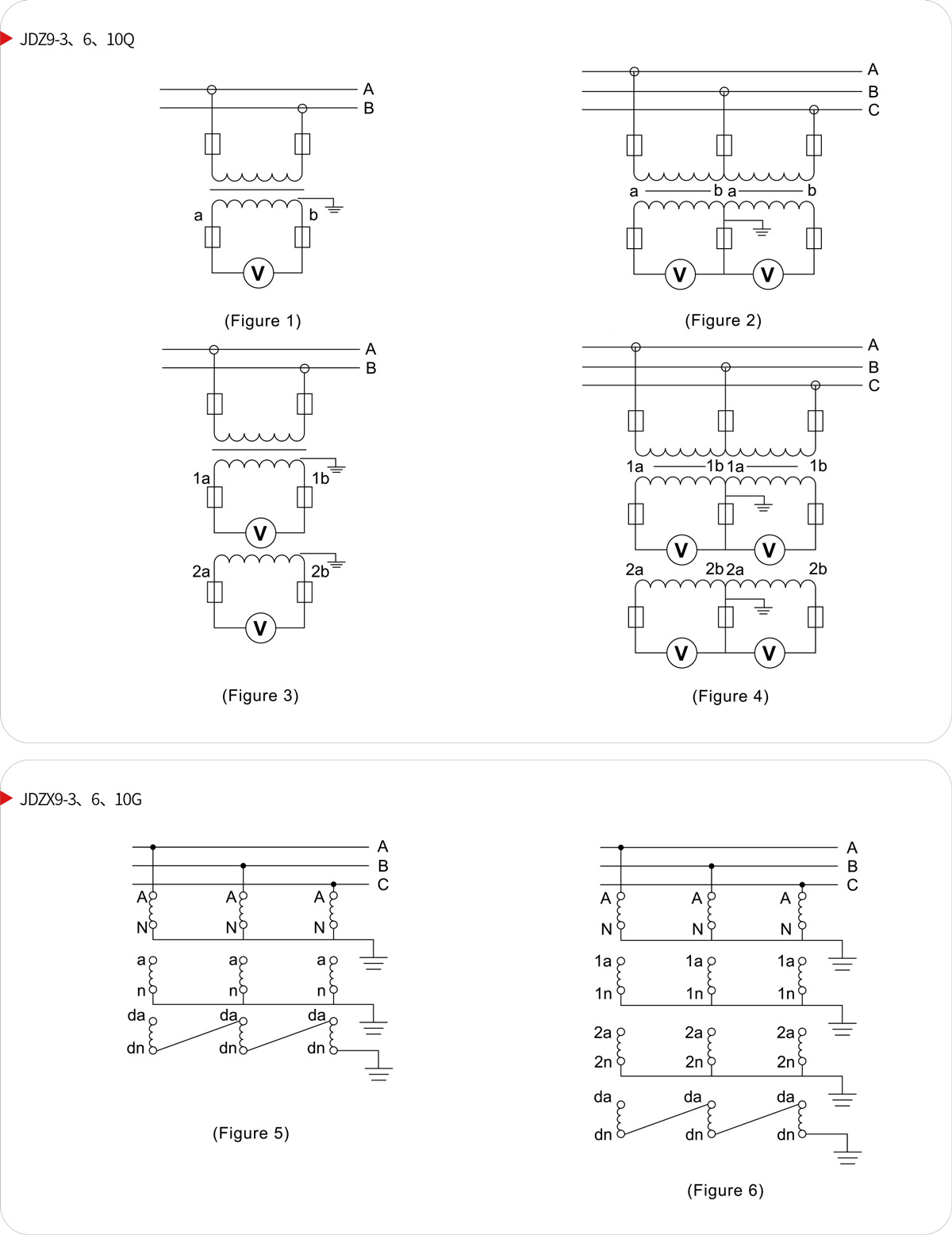

Wiring Diagram
Relate Products
Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ(J)-3、6、10
Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ10-3、6、10(Q)
Voltage Transformer Current Transformers For Vacuum Circuit Breakers JDZX10-3、6、10
Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ(X)
Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ(X)
Voltage Transformer Fully Insulated Transformer JDZ(X)9-10
Voltage Transformer Semi-insulating Transformer JDZX9-3、6、10Q
Voltage Transformer High Altitude Transformer JDZ (X) 11-3, 6, 10a (G)
Voltage Transformer Capacity 2000-3000VA Power Transformers JDZC-6、10
Voltage Transformer neutral point ungrounded JDZ(X)11-15、20(G)
Voltage Transformer ungrounded systems JDZX11-20G
Voltage Transformer Measurement Transformer Measuring Transformer 35kV JDZ9-35Q
Voltage Transformer Measurement Transformer Measuring Transformer 35kV JDZX9-35
