Voltage Transformer Measurement Transformer Measuring Transformer 35kV JDZ9-35Q
- Intro：Type DescriptionTechnical DataTypeRated voltage ration(V)Rated secondary output(VA)Max.output(VA)Rated insulationlevel (kV)NotesWiringdiagram0.20.5Level1Level30.2/0.20.2/0.50.5/0.56PJDZ9-35Q35000/10060120240600///80040.5/95/200SameVKVFigure 1-235000/100/100////30/3040/40/500/500Figure 3-4JDZX9-35G35 …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

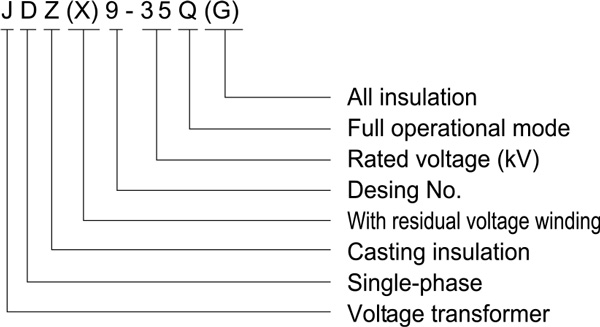

Type Description
Technical Data
| Type | Rated voltage ration (V) | Rated secondary output(VA) | Max.output (VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||
| JDZ9-35Q | 35000/100 | 60 | 120 | 240 | 600 | / | / | / | 800 | 40.5/95/200 | Same "VKV" | Figure 1-2 |
| 35000/100/100 | / | / | / | / | 30/30 | 40/40 | / | 500/500 | Figure 3-4 | |||
| JDZX9-35G | 35000/√3 / 100/√3 / 100/3 | 30 | 90 | 180 | 500 | / | / | 100 | 600 | 40.5/95/200 | Figure 5 | |
| 35000/√3 / 100/√3 / 100/√3 / 100/3 | / | / | / | / | 15/15 15/20 | 45/45 | 100 | 300/300 | Figure 6 | |||

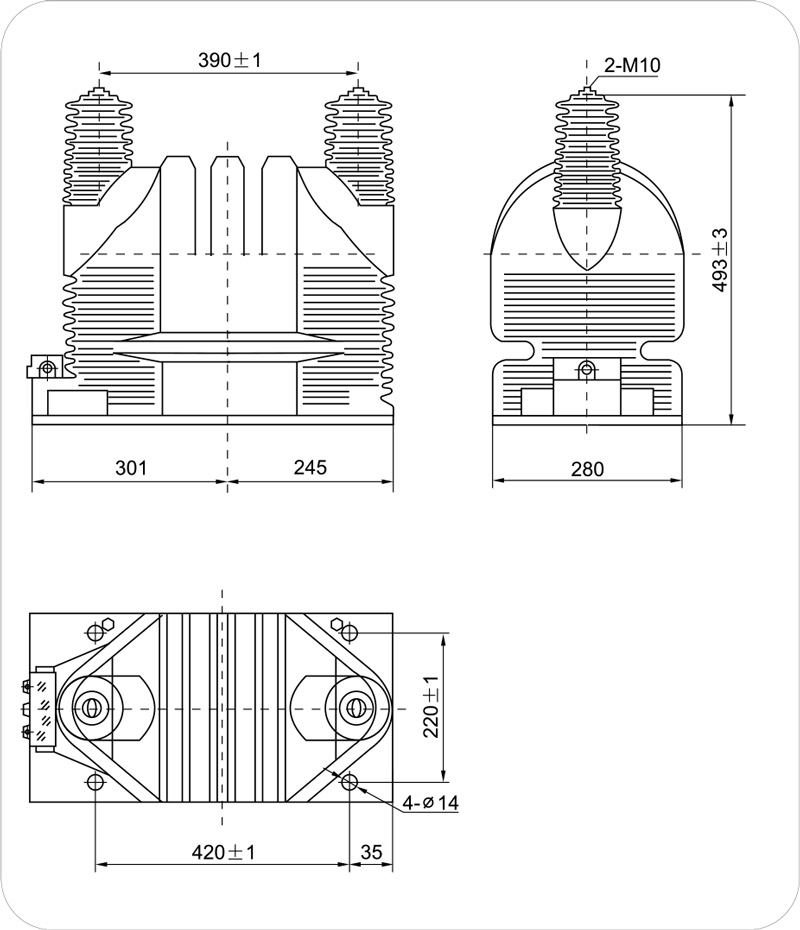

Overall Dimension Drawing

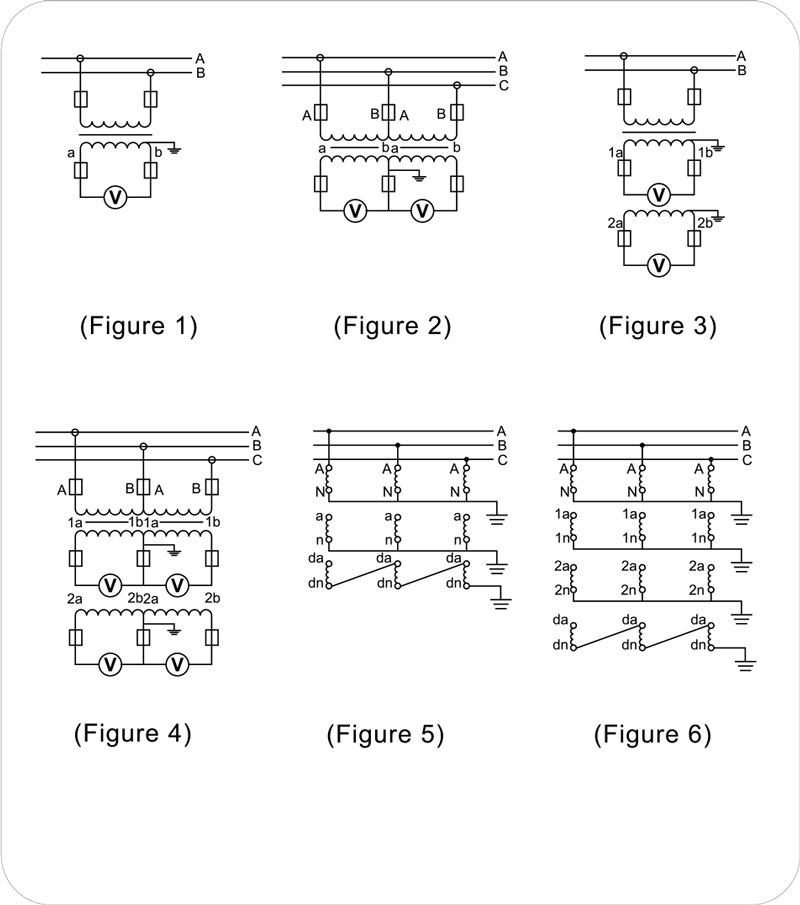

Wiring Diagram
