JDZX9-3、6、10Q Voltage Transformer
- Intro：Type DescriptionTechnical DataRated voltage ration(V)Rated secondary output(VA)Max.output(VA)Rated insulationlevel (kV)NotesWiringdiagram0.20.5Level1Level30.2/0.20.2/0.50.5/0.56P3000/√3/ 100/√3/ 100/33080180500//1006003.6/25/40SameVKIFigure 16000/√3 /100/√3 /100/37.2/32/6010000/√3 /100/√3 /100/312/4 …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

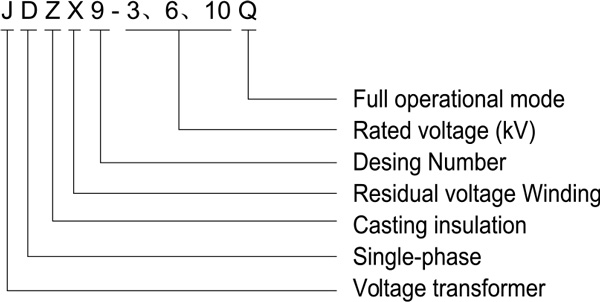

Type Description
Technical Data
| Rated voltage ration (V) | Rated secondary output(VA) | Max.output (VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | |||||
| 3000/√3 / 100/√3 / 100/3 | 30 | 80 | 180 | 500 | / | / | 100 | 600 | 3.6/25/40 | Same "VKI" | Figure 1 |
| 6000/√3 / 100/√3 / 100/3 | 7.2/32/60 | ||||||||||
| 10000/√3 / 100/√3 / 100/3 | 12/42/75 | ||||||||||
| 10000/√3 / 100/√3 / 100/√3 / 100/3 | / | / | / | / | 15/15 15/20 | 45/45 | 300/300 | Figure 2 | |||

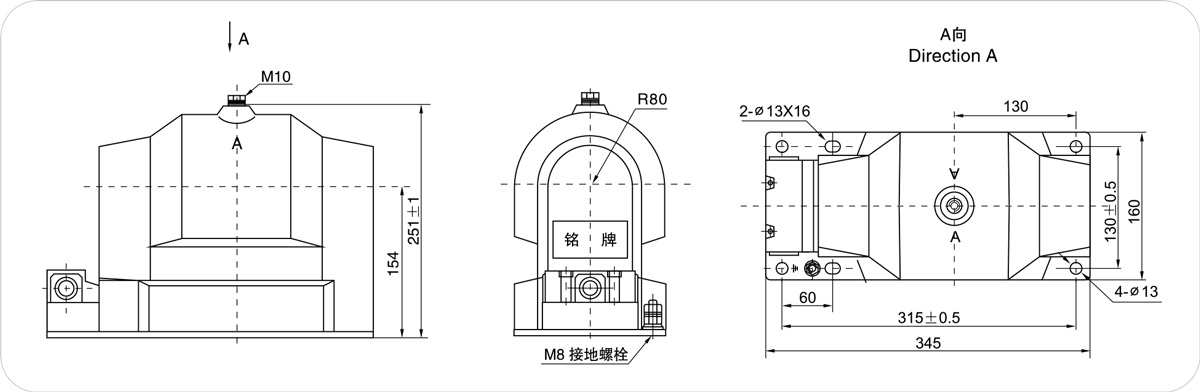

Overall Dimension Drawing

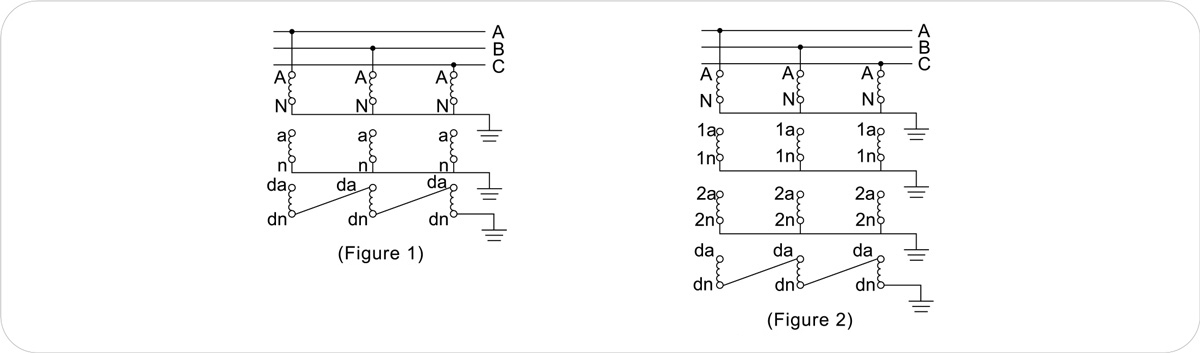

Wiring Diagram
