JDZ(X)11-15、20(G) Voltage Transformer
- Intro：Type DescriptionTechnical DataTypeRated voltage ration(kV)Rated secondary output(VA)Max.output(VA)Rated insulation level(kV)Wiringdiagram0.20.510.2/0.20.2/0.50.5/0.56PJDZ11-1515/0.13080200////50018/55/105Figure 1-4JDZ11-2020/0.150024/65/125JDZ11-1515/0.1/0.1///20/2020/3030/30/30018/55/105JDZ11-2020/ …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

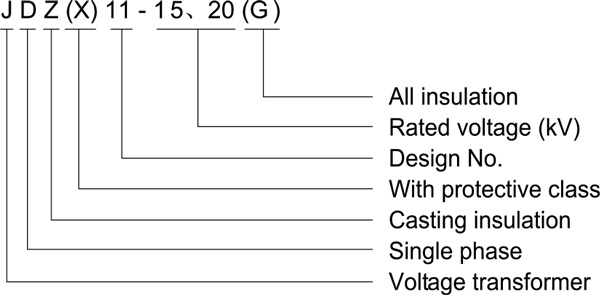

Type Description
Technical Data
| Type | Rated voltage ration (kV) | Rated secondary output (VA) | Max.output (VA) | Rated insulation level (kV) | Wiring diagram | ||||||
| 0.2 | 0.5 | 1 | 0.2/0.2 | 0.2/0.5 | 0.5/0.5 | 6P | |||||
| JDZ11-15 | 15/0.1 | 30 | 80 | 200 | / | / | / | / | 500 | 18/55/105 | Figure 1-4 |
| JDZ11-20 | 20/0.1 | 500 | 24/65/125 | ||||||||
| JDZ11-15 | 15/0.1/0.1 | / | / | / | 20/20 | 20/30 | 30/30 | / | 300 | 18/55/105 | |
| JDZ11-20 | 20/0.1/0.1 | 300 | 24/65/125 | ||||||||
| JDZX11-15G | 15/√3 / 0.1/√3 / 0.1/3 | 20 | 60 | 120 | / | / | / | 100 | 400 | 18/55/105 | Figure 5 |
| JDZX11-20G | 20/√3 / 0.1/√3 / 0.1/3 | 400 | 24/65/125 | ||||||||
| JDZX11-15G | 15/√3 / 0.1/√3/0.1 / √3/0.1/3 | / | / | / | 15/15 | 15/20 | 40/40 | 300/300 | 18/55/105 | Figure 6 | |
| JDZX11-20G | 20/√3 / 0.1/√3 / 0.1/√3 / 0.1/3 | 300/300 | 24/65/125 | ||||||||

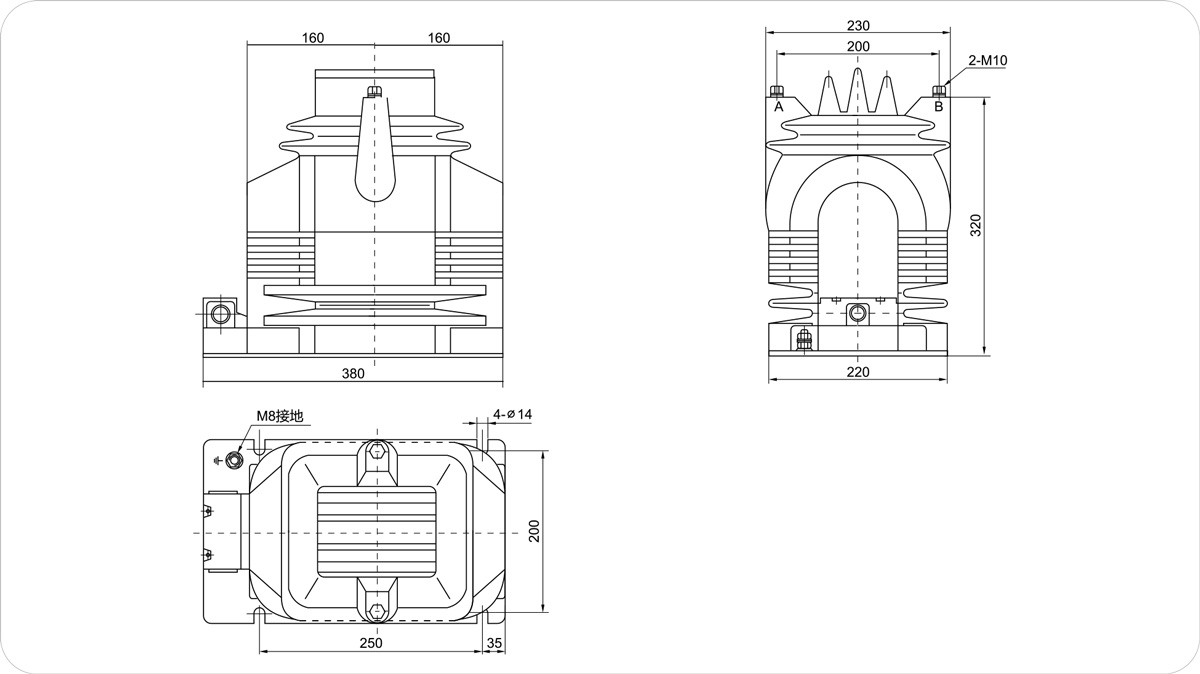

Overall Dimension Drawing

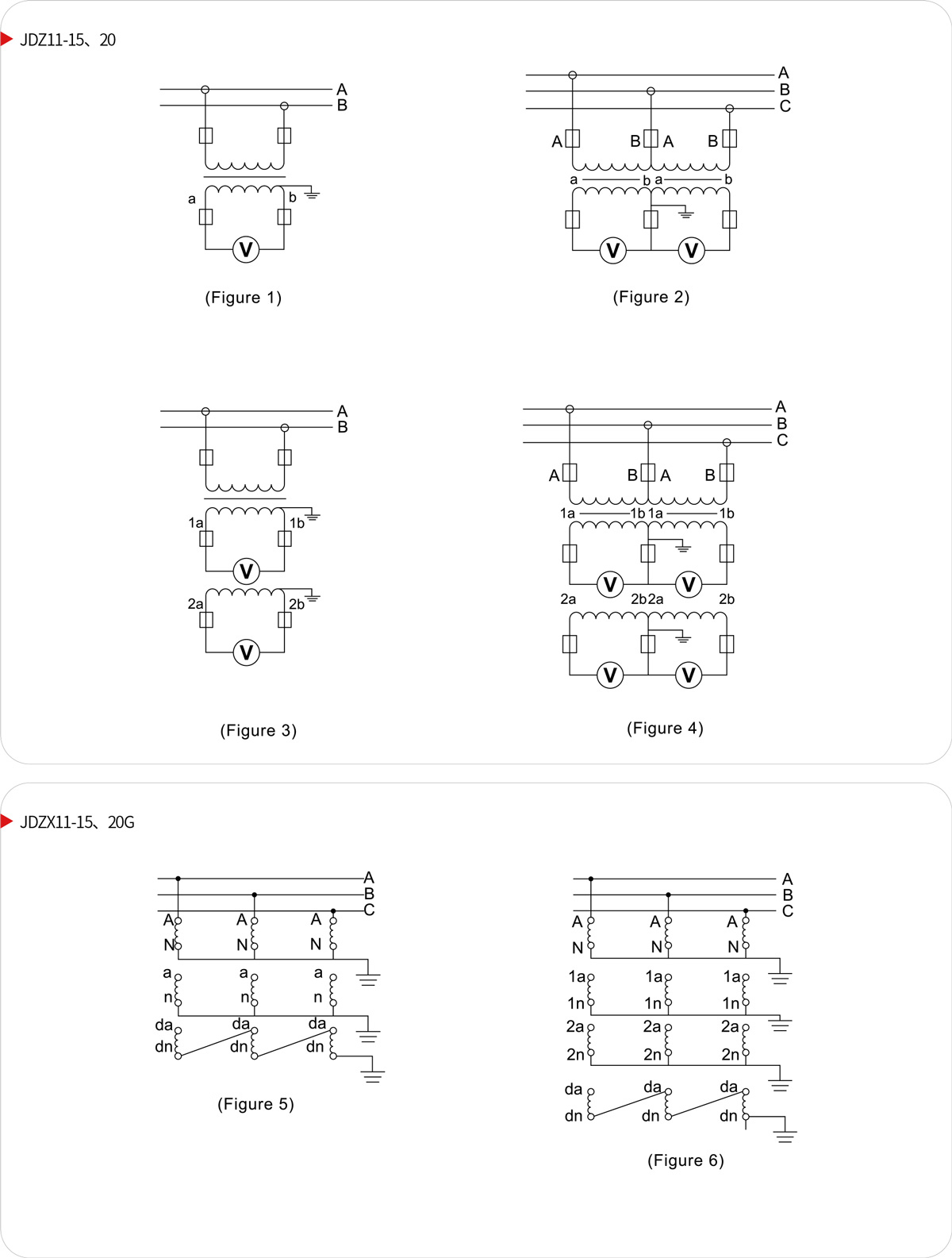

Wiring Diagram
