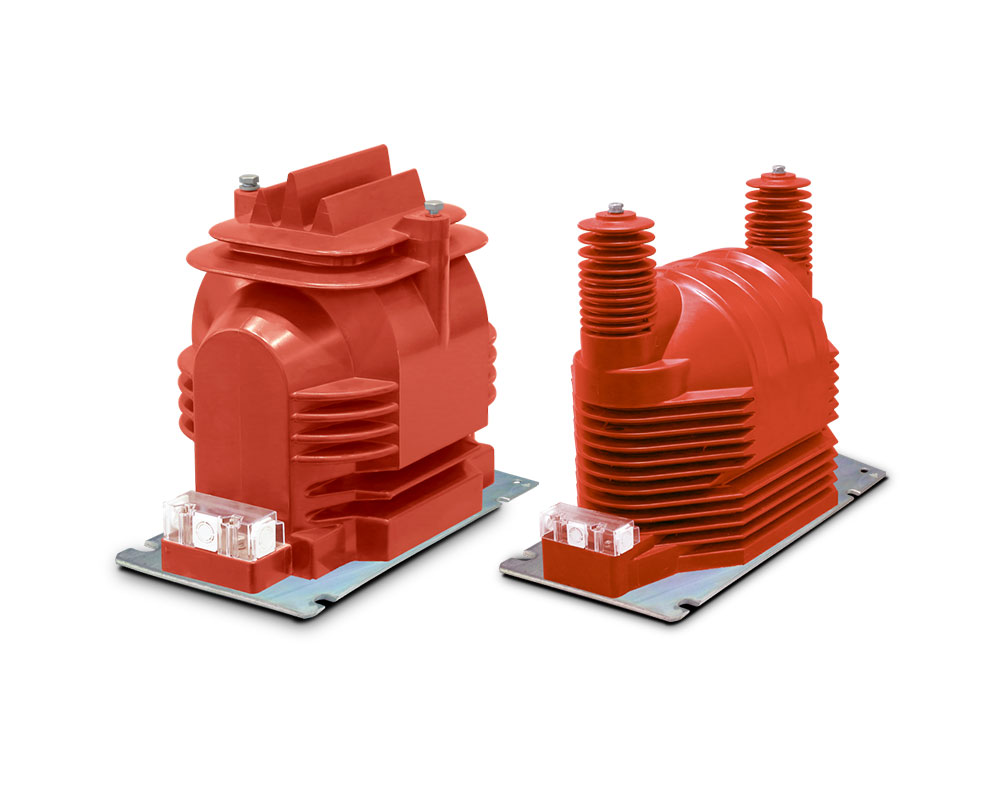

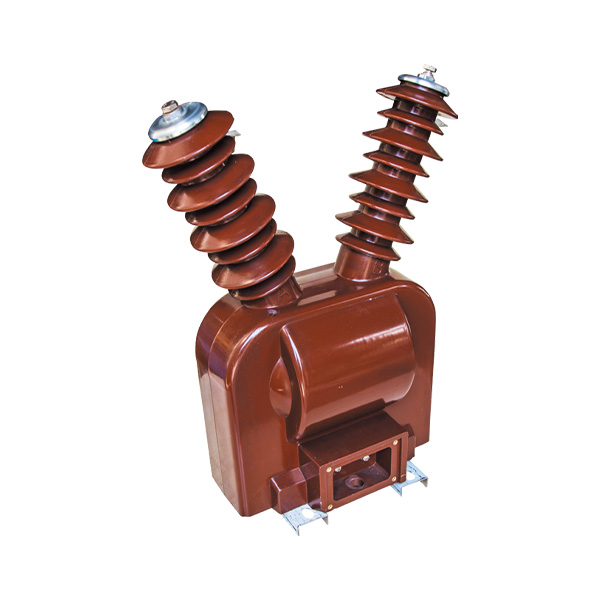

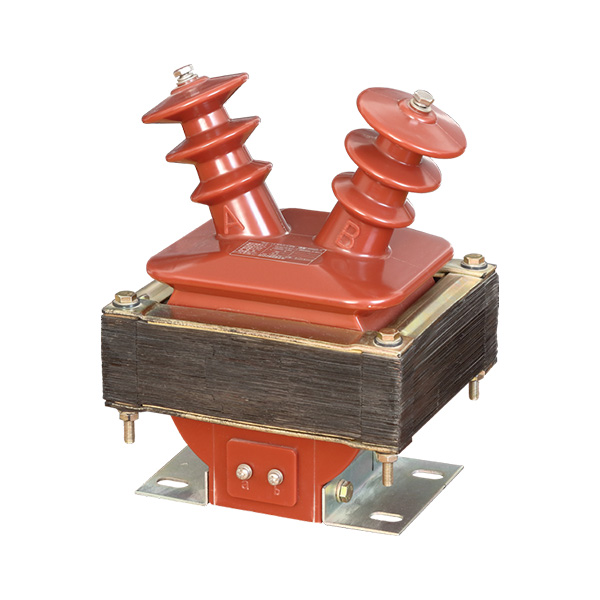

1. Introduction to Single Phase Voltage Transformer

2. Working Principles

• Electromagnetic Induction:

• The transformer consists of a primary winding (connected to the high-voltage circuit) and a secondary winding (connected to measuring instruments or relays).

• An alternating current in the primary winding generates a time-varying magnetic flux in the core, which induces a proportional voltage in the secondary winding.

• The voltage ratio between primary and secondary sides is determined by the turns ratio ($V_1/V_2=N_1/N_2$), where $N_1$ and $N_2$ are the number of turns in the primary and secondary windings, respectively.

• Key Design Considerations:

• Accuracy: Designed to maintain a precise voltage ratio (e.g., 0.5% or 1% tolerance) under varying load conditions.

• Isolation: Provides electrical isolation between high-voltage circuits and low-voltage instruments for safety.

• Burden Limit: The secondary side must not exceed its rated load (expressed in VA) to avoid errors caused by core saturation.

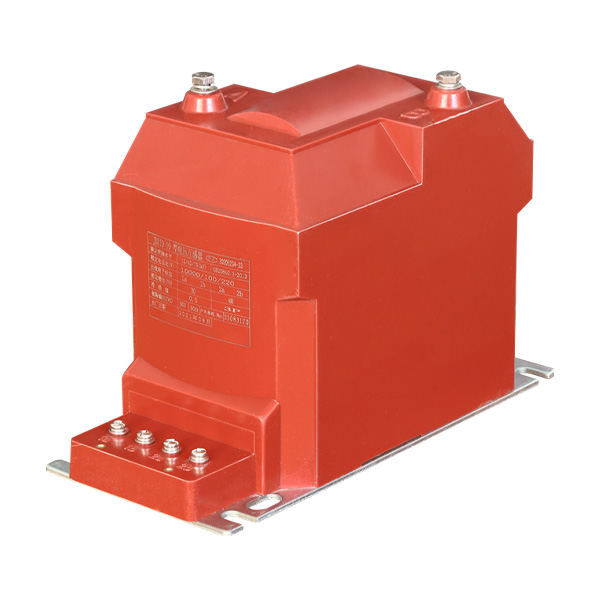

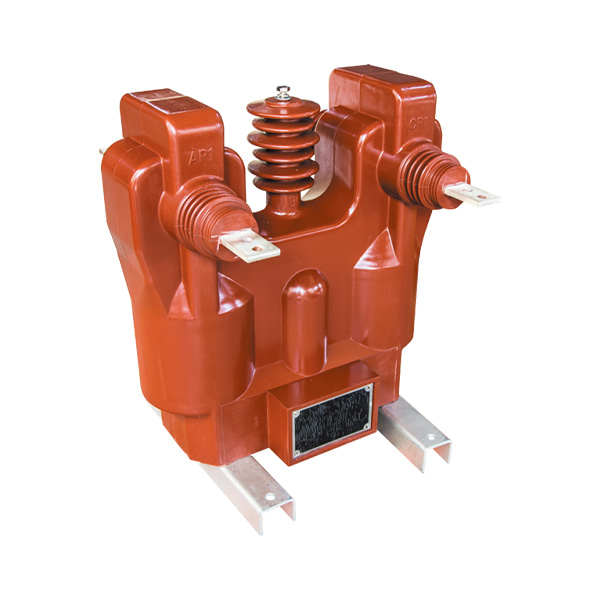

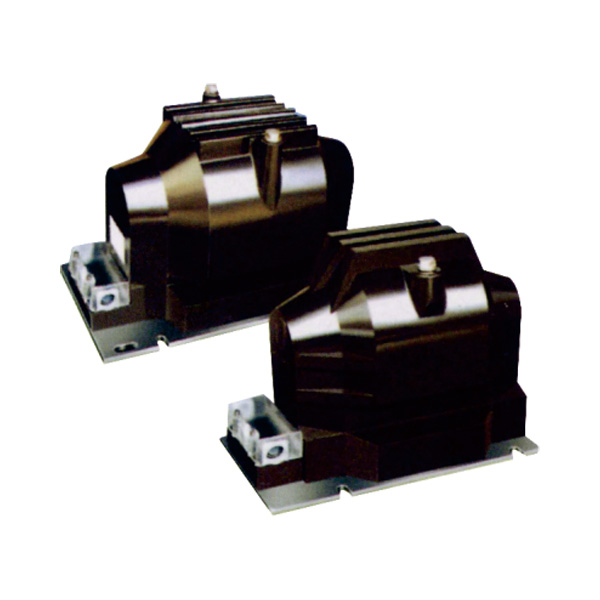

3. Types of Single Phase Voltage Transformers

4. Applications

• Power System Monitoring:

• Measuring voltage in single-phase circuits (e.g., residential or commercial power distribution).

• Providing voltage signals to instruments like voltmeters, energy meters, and data loggers.

• Protective Relaying:

• Detecting voltage abnormalities (e.g., overvoltage, undervoltage) to trigger circuit breakers or alarms.

• Ensuring grid stability by isolating faulty sections during voltage fluctuations.

• Renewable Energy Systems:

• Monitoring voltage in solar PV inverters, wind turbines, or energy storage systems connected to single-phase grids.

• Industrial and Commercial Settings:

• Controlling motors, drives, and other equipment in single-phase industrial processes.

• Ensuring safe operation of low-voltage control circuits in machinery.

• Testing and Calibration:

• Calibrating high-voltage measurement devices in laboratories or field environments.

5. Advantages

• Safety: Isolates high-voltage circuits from human operators and low-voltage equipment.

• Accuracy: Enables precise voltage measurement for billing, system protection, and efficiency optimization.

• Standardization: Secondary voltages (e.g., 100V or 120V) are standardized for compatibility with industry instruments.

• Reliability: Robust designs (e.g., epoxy casting, oil insulation) ensure long lifespan and resistance to environmental factors.

6. Challenges and Solutions

• Core Saturation: Excessive primary voltage or secondary load can cause core saturation, leading to measurement errors.

• Solution: Design with conservatively rated core materials (e.g., silicon steel) and limit secondary burden.

• Temperature and Humidity Effects: Environmental factors can degrade insulation or affect winding resistance.

• Solution: Use moisture-resistant insulation (e.g., epoxy) and thermal management techniques.

• Harmonic Distortion: Non-linear loads introduce harmonics, distorting voltage waveforms.

• Solution: High-frequency core materials (e.g., ferrite) or active filtering in measurement systems.

7. Standards and Specifications

• IEC 60044-2: International standard for instrument transformers (voltage transformers).

• ANSI C57.13: American standard for accuracy, testing, and rating of instrument transformers.

• GB/T 1207: Chinese standard for voltage transformers in power systems.

8. Future Trends

• Smart Grid Integration: Development of digital voltage transformers (e.g., electronic or optical PTs) for IoT-based monitoring and real-time data transmission.

• Energy Efficiency: Use of amorphous alloy cores or low-loss materials to reduce standby losses.

• Miniaturization: Compact designs for space-constrained applications (e.g., smart meters, distributed energy resources).

Conclusion
