Inductive voltage transformers (IVTs) play a critical role in wind farm collector systems, where they are essential for voltage measurement, protection, and control. Below is a detailed overview of their application, design considerations, and benefits in this specific context:
An IVT is a type of voltage transformer (VT) that operates on the principle of electromagnetic induction, similar to a power transformer. It steps down high primary voltages (e.g., 35 kV or 110 kV in wind farm collector systems) to low secondary voltages (e.g., 110 V or 100 V) for safe measurement and relaying. IVTs are widely used in traditional power systems and are well-suited for wind farms due to their reliability and compatibility with existing protection and control equipment.
Wind farm collector systems connect multiple wind turbines to a substation, transmitting power at medium or high voltage (e.g., 35–150 kV). IVTs are deployed at strategic points (e.g., turbine outputs, collector lines, substation entrances) to:
Voltage Measurement & Monitoring
Provide accurate voltage data for real-time monitoring of the collector system’s performance (e.g., voltage stability, harmonic levels).
Enable operators to optimize power flow and ensure compliance with grid codes (e.g., voltage regulation requirements).
Protection Relaying
Detect abnormal voltage conditions (e.g., overvoltage, undervoltage, phase imbalance) and trigger protective relays to isolate faults (e.g., cable failures, transformer faults).
Support distance protection, overcurrent protection, and autoreclosing schemes in the collector system.
Power Quality Analysis
Monitor voltage harmonics, flicker, and transient events caused by wind turbine switching or grid disturbances.
Help identify issues like voltage sags/swells that could affect turbine performance or grid stability.
Grid Connection Compliance
Ensure the wind farm’s output voltage meets the requirements of the utility grid (e.g., voltage magnitude, frequency, and waveform quality).
Wind farm environments are harsh, with exposure to high humidity, salt mist (coastal farms), lightning, and mechanical vibrations from turbines. IVTs must be designed to withstand these conditions while maintaining accuracy. Key considerations include:
Insulation Design
Outdoor-rated insulation: Use materials like epoxy resin (dry-type) or mineral oil (oil-immersed) to prevent flashovers in wet or contaminated environments.

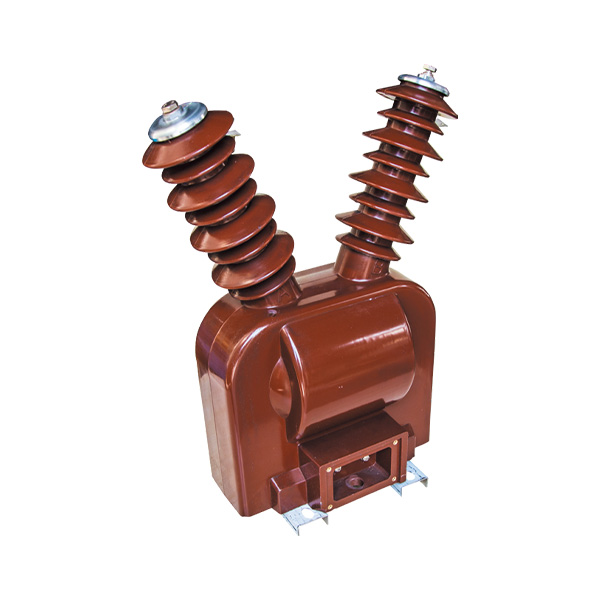

Umbrella-shaped sheds: Increase creepage distance to reduce the risk of pollution-induced flashovers (common in coastal or dusty sites).
Electromagnetic Compatibility (EMC)
Lightning and Surge Protection
Temperature and Thermal Management
Compact Footprint
Two common IVT designs for outdoor applications in wind farms are:

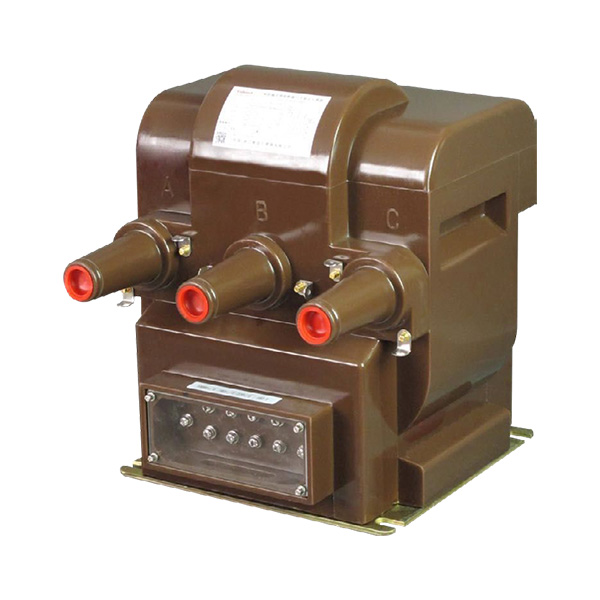

| Type | Features | Advantages | Challenges |
|---|
| Oil-Immersed | - Uses mineral oil for insulation and cooling.
- Suitable for high-voltage applications (e.g., 110 kV). | Excellent insulation and thermal performance. | Requires regular oil maintenance; risk of leakage. |
| Dry-Type (Epoxy Resin) | - Windings encapsulated in epoxy resin.
- Compact and maintenance-free. | Fire-resistant, moisture-proof, and lightweight. | Limited to lower voltage levels (e.g., ≤35 kV); lower thermal capacity. |
Reliability in Harsh Environments
Compatibility with Legacy Systems
Cost-Effectiveness
High Accuracy
Challenges
Limited Bandwidth: IVTs may struggle with high-frequency measurements (e.g., harmonic analysis beyond the 50th harmonic).
Size and Weight: Oil-immersed IVTs are bulky, requiring dedicated space in substations.
Digital Integration: Traditional IVTs produce analog outputs, necessitating analog-to-digital converters (ADCs) for smart grid integration.
Alternatives
Electronic Voltage Transformers (EVTs): Use capacitive dividers or Rogowski coils for wide bandwidth and digital outputs, but are more expensive.
Optical Voltage Sensors: Based on the Pockels effect, they offer immunity to EMI but are less common in wind farms due to cost and technical complexity.
Inductive voltage transformers are a foundational component of wind farm collector systems, providing reliable voltage measurement and protection in challenging outdoor environments. While they face competition from advanced digital sensors, their proven durability, compatibility with legacy infrastructure, and cost-effectiveness make them a preferred choice for many wind farm operators. As smart grid technologies advance, IVTs may increasingly be paired with digital interfaces to bridge the gap between traditional and modern power systems.
